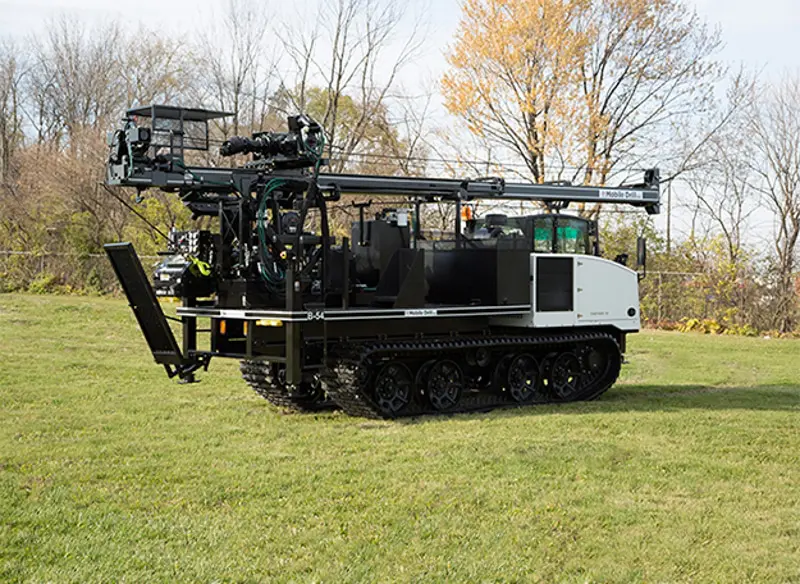

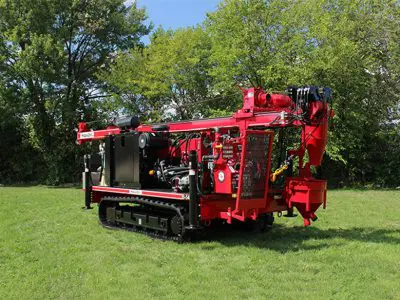

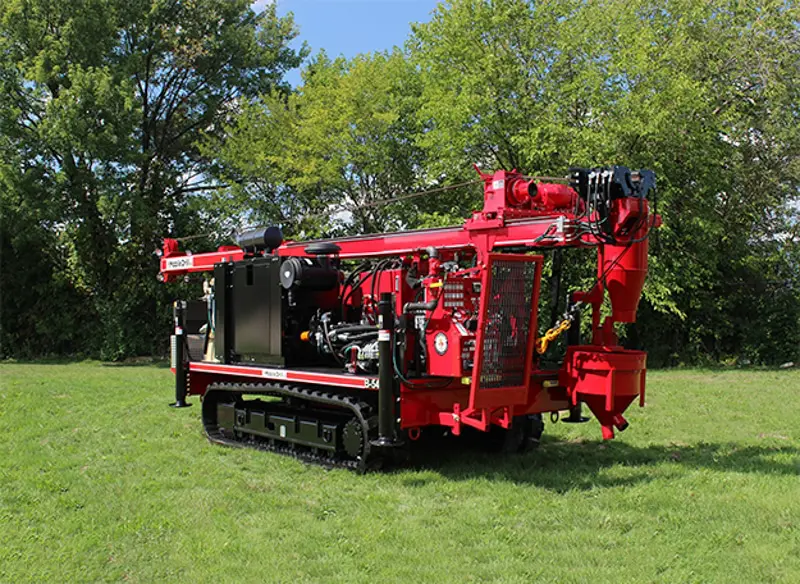

HYDRAULIC FEED SYSTEM
- Pulldown force: 16,000 lbs [7,257.5 kg]
- Retract force: 24,000 lbs [10,886.2 kg]
- Feed speed, down: 0-71 ft/min [21.6 m/min]
- Feed speed, retract: 0-48 ft/min [14.6 m/min]
- Feed stroke: 13 ft [3.96 m]
- Angle Drilling
- In-out slide base: 10 in [254 mm] of travel
- Adjustable auger guide support
POWER UNIT
- Deck Engines: Cummins, Deutz Diesel
- PTO: Transmission or Transfer Case
HYDRAULIC PUMPS
- Primary Pump: 36 gpm (136.3 l/min)
- Auxiliary Pump: 24 gpm (90.9 l/min)
DRILL HEAD ROTARY OPTIONS
STANDARD HEAD
- 10-SPEEDS
- Open bore: 4-5/8 in [118 mm]
- Maximum rotary speed: 856 rpm
- Maximum torque: 8,611 ft-lb [11,675 Nm]
C-SERIES HEAD
- INFINATELY VARIABLE SPEEDS
- Open bore: 5-1/8 in [130 mm]
- Maximum rotary speed: 1,300 rpm
- Maximum torque: 2,750 ft-lb [3,728 Nm]
X-SERIES HEAD
- 8-SPEEDS
- Open bore: 5-1/8 in [130 mm]
- Maximum rotary speed: 1,020 rpm
- Maximum torque: 10,100 ft-lb [13,693 Nm]
ESTIMATED OPERATING CAPACITIES (STANDARD ROTARY HEAD)
- Hollow stem augers, 3-1/4 in [82.6 mm] ID: 150 ft [45.7 m]
- Continuous flight auger, 6 in [152.4 mm] OD: 300 ft [91.4 m]
- Continuous flight auger, 14 in [355.6 mm] OD: 60 ft [18.3 m]
- Rotary drilling, 2-7/8 in [73 mm] OD drill rod: 1,500 ft [457 m]
- Diamond core drilling, N Wireline: 1,200 ft [365.8 m]
- Note: Above drilling capacities may vary according to subsurface conditions and rotary head option.
SPT AUTOMATIC HAMMER
- ASTM D-1586 standards, standard duty and heavy duty 140 lb [63.5 kg], 170 lb [77.1 kg]
- 300 lb [136.1 kg]
- 340 lb [154.2 kg] slugs available
- Hydraulic self compensating
LEVELING JACKS
- Single Front/Dual Rear, 24 in (609.6 mm) OR
- 36 in (914.4 mm) Stroke
HOIST
MAIN
- Single Line Capacity: 8,500 lbs [3,855.5 kg]
- Line speed: 0–75 fpm [22.9 m/min]
- Line speed – Reverse: 0–325 fpm [0–99.06 mpm]
- Cable diameter: 1/2 in (.500) [12.7 mm]
- Cable length: 100 ft [30.5 m]
AUXILIARY
- Single Line Capacity: 4,500 lbs [2,041 kg]
- Line speed: 0–135 fpm [41.2 m/min]
- Cable diameter: 5/16 in (.325) [8.3 mm]
- Cable length: 75 ft [22.9 m] standard
WIRELINE
- Single Line Capacity: 1,200 lbs [544.3 kg]
- Line speed: 0–500 ft/min [152.4 m/min]
- Cable diameter: 3/16 in (.185) [4.7 mm]
- Cable length: 400 ft [121.9 m]
- Winch capacity: 3,500 ft [1,067 m]
SAFE-T DRIVER
- Single Line Capacity: 900 lbs [408.2 kg]
- Line speed: variable up, freefall down
- Cable diameter: 1/4 in (.250) [6.4 mm]
- Cable length: 300 ft [91.4 m] standard
OPTIONAL EQUIPMENT
- Make/break rod clamp system
- Break-out wrench
- Single rod loader
- Water pumps
- Rod trough
- Auger/rod rack – Above deck combination
- Auger rack – Under body swing out
- Auger rack – Front mounted
- Tool guide
- Driller platform
- And much more!
MOUNTING OPTIONS
- Truck
- Trailer
- Tractor
- Dozer
- Rubber Track
- Skid
