HYDRAULIC FEED SYSTEM
- Pulldown force: 7,700 lbs [3,492.66 kg]
- Retract force: 7,700 lbs [3,492.66 kg]
- Feed speed, down: 0-95 ft/min [28.96 m/min]
- Feed speed, retract: 0-140 ft/min [42.67 m/min]
- Feed stroke: 86 in [2.184 m]
POWER UNIT
- Deck Engine: 46 Hp [46.64 ps] Diesel
- PTO: Transmission or Transfer Case
HYDRAULIC PUMPS
- Primary Pump: 30 gpm [113.6 l/min]
DRILL HEAD ROTARY
- Maximum Rotary Speed: 160 RPM [60.76 rad/s]
- Torque: Standard 1,400 ft-lbs [1,898.15 Nm]
- 0-160 RPM [0-60.76 rad/s] Variable Speeds
ESTIMATED OPERATING CAPACITIES
- Continuous Flight Auger, 6 in [152 mm] OD: 50 ft [15.24 m]
- Rotary Drilling, NW 2-5/8 in [66.68 mm] OD: 200 ft [60.96 m]
- Diamond Coring NQ: 250 ft [76.2 m]
HOIST
- AUXILIARY—SINGLE LINE CAPACITY: 2,000 lbs [907.19 kg]
- Line Speed: 0–111 ft/min [0-33.83 m/min]
- Cable Diameter: 5/16 in (.325) [8.26 mm]
- Cable length: 75 ft [22.86 m] Standard
OPTIONAL EQUIPMENT
- Above Deck Combination Auger/Rod Rack
- Toolboxes
- Water Pumps
- Break-Out Wrench
- Rod Clamp
- Combination Auger/Rod Rack
- Auger Guide
- Driller Platform
- Concrete/Asphalt Coring Kit
- Manual Jacks
LEVELING JACKS
- Single Front/Dual Rear, 24 in [609.6 mm] or
- 36 in [914.4 mm] Stroke
MOUNTING OPTIONS
- Truck
- Trailer

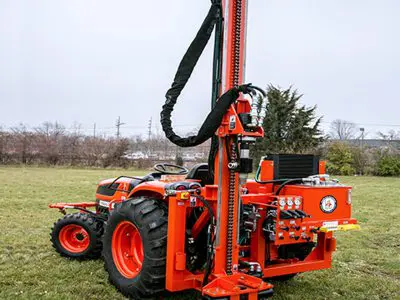

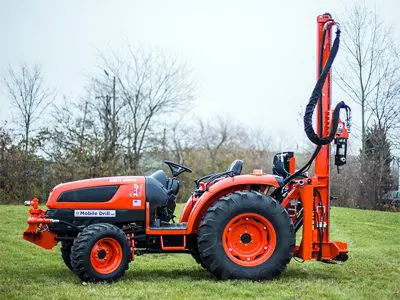

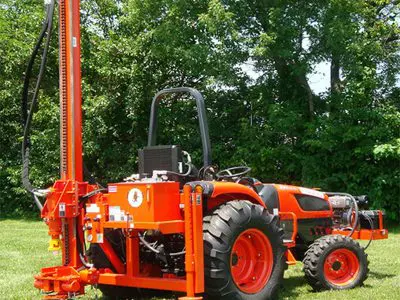

- Tractor
- Dozer
- Rubber Track (remote controlled)
- Skid
