Drill Rentals

(Rentals)

MDI’S NEW RENTAL PROGRAM FEATURES THE B57, B51, & B25 Drill rigs

Mobile Drill International (MDI), is pleased to introduce its new rental program for the B57, B51, and B25 drill rigs.

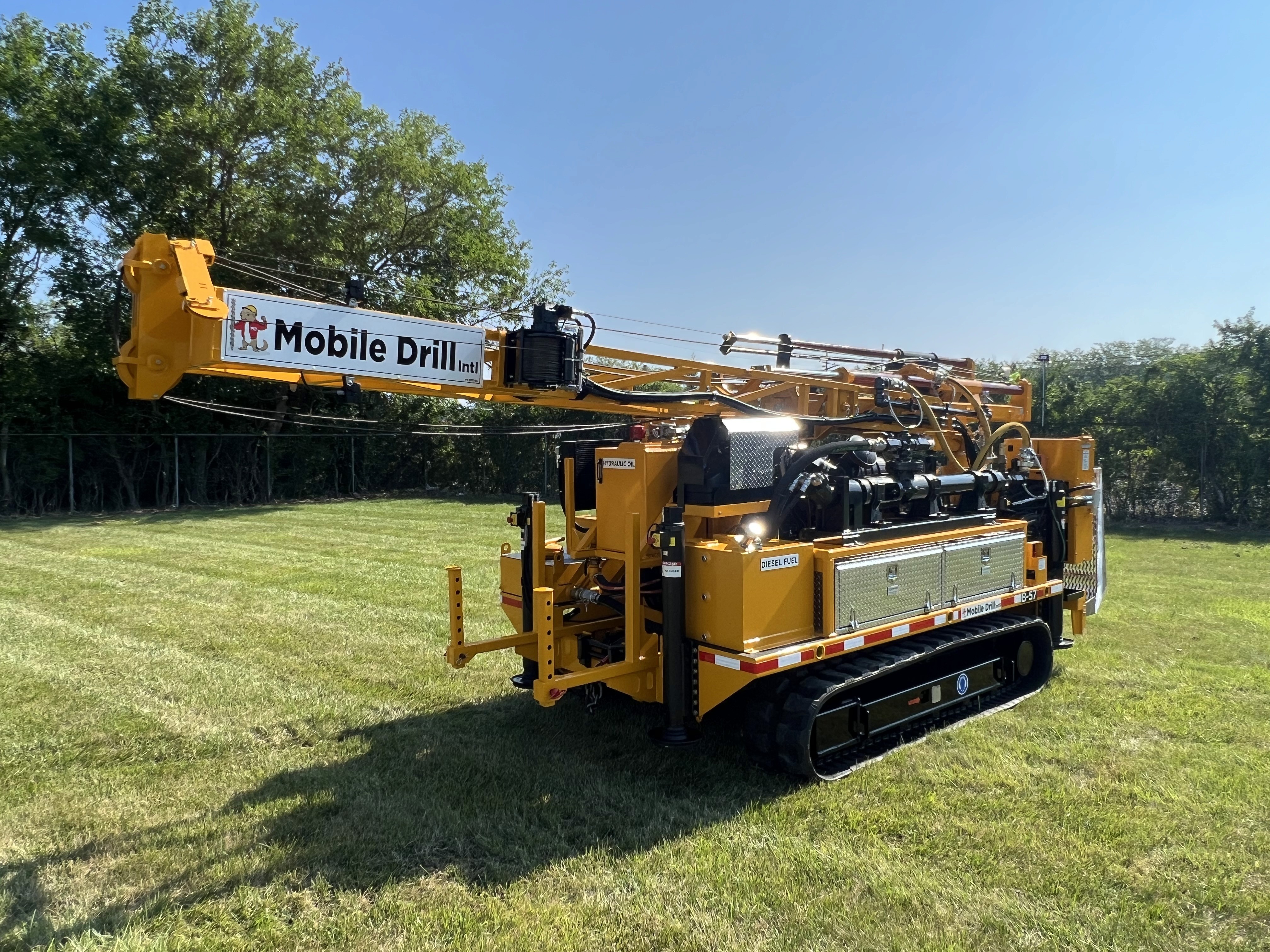

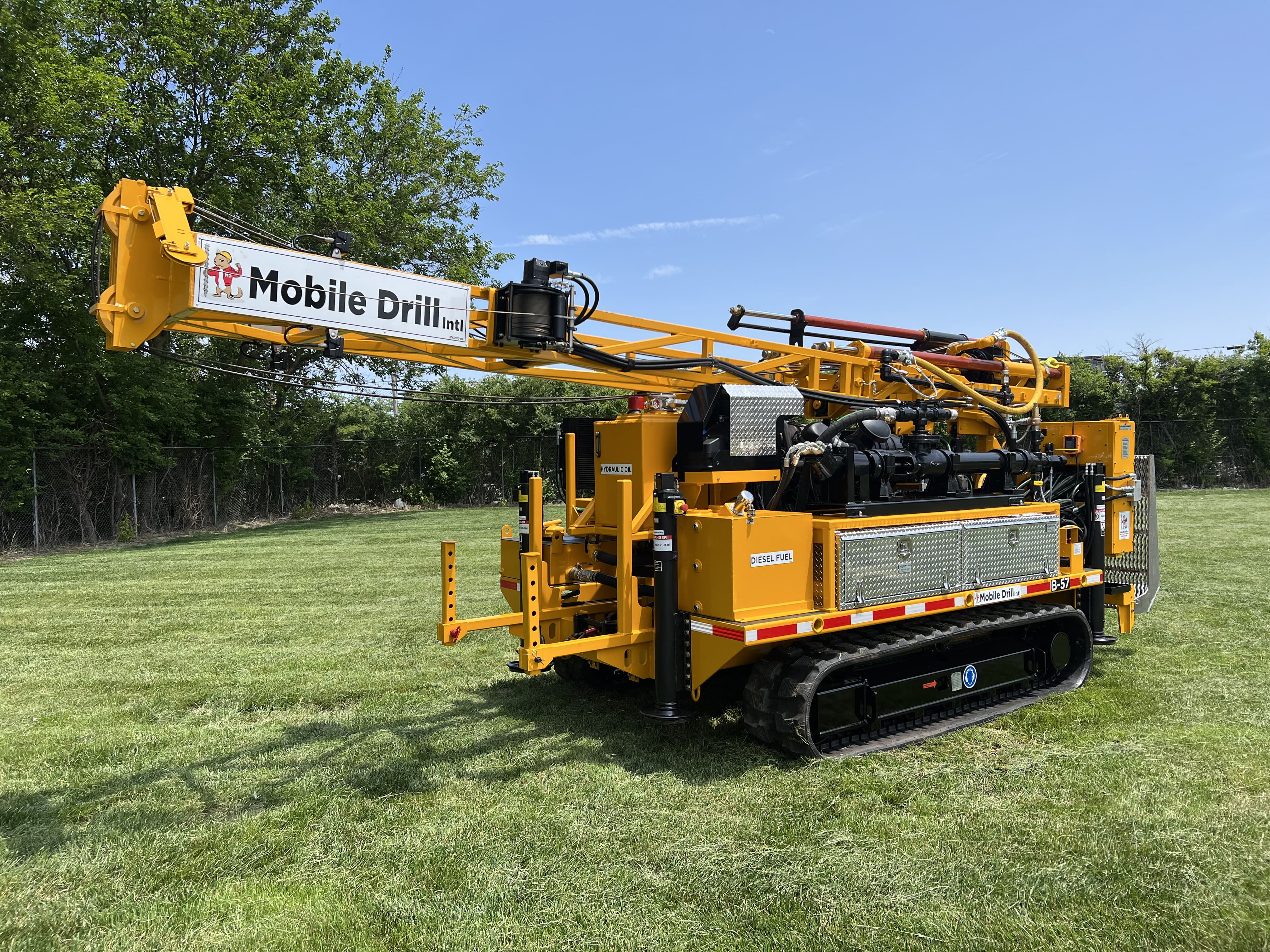

B57 Drill Rig

The B-57 is a proven workhorse and a true standard of the geotechnical industry. Delivering 20,000 lbs of pulldown and 30,000 lbs of retract force, powered by a reliable 125 HP John Deere diesel engine, it’s built to handle demanding geotechnical and environmental applications with confidence, strength, and control.

The rotary system offers high torque or high speed configurations, producing up to 11,420 ft-lb to tackle everything from hollow stem and continuous flight augers to deep rotary and diamond core drilling. With heavy-duty hoists, hydraulic breakout systems, multiple winch options, and versatile mounting configurations, this time-tested machine is engineered to maximize productivity and deliver dependable performance.

Learn More

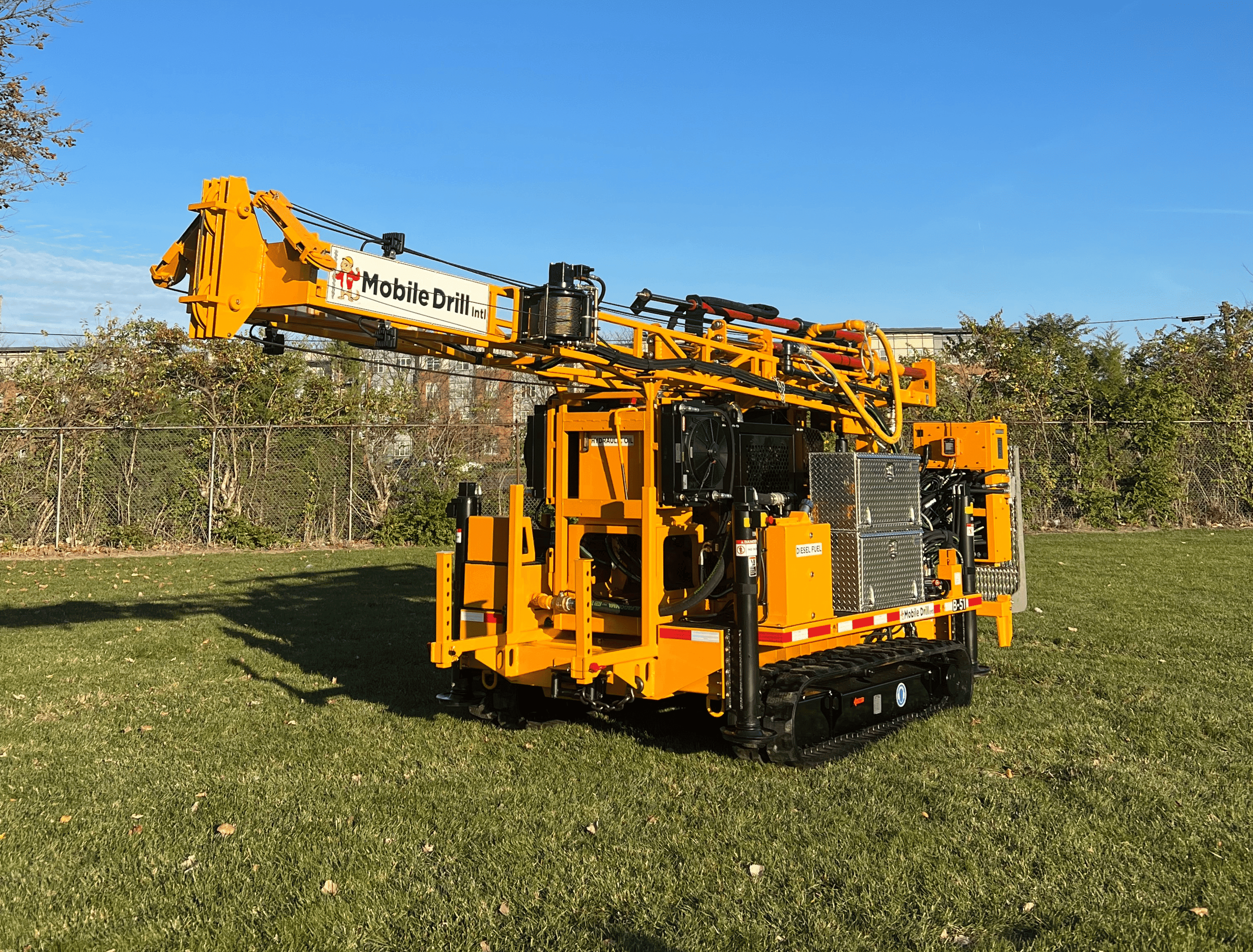

B51 Drill Rig

The B51 is the next evolution of classic Mobile Drill power and versatility. Delivering up to 9,876 ft-lbs of torque, the B51 is available in both track- and truck-mounted configurations, making it ideal for the 100–125 ft hollow-stem auger market.

Designed with a compact footprint mechanical drive unit, the B51 is perfectly suited for the geotechnical industry, offering performance without sacrificing maneuverability.

At the heart of the B51 is its power shift transmission, allowing operators to shift gears — and even change direction — without stopping rotation. This innovative feature provides unmatched control of the drill string, especially when working in stiff or sticky clays, resulting in faster, safer production in the toughest conditions.

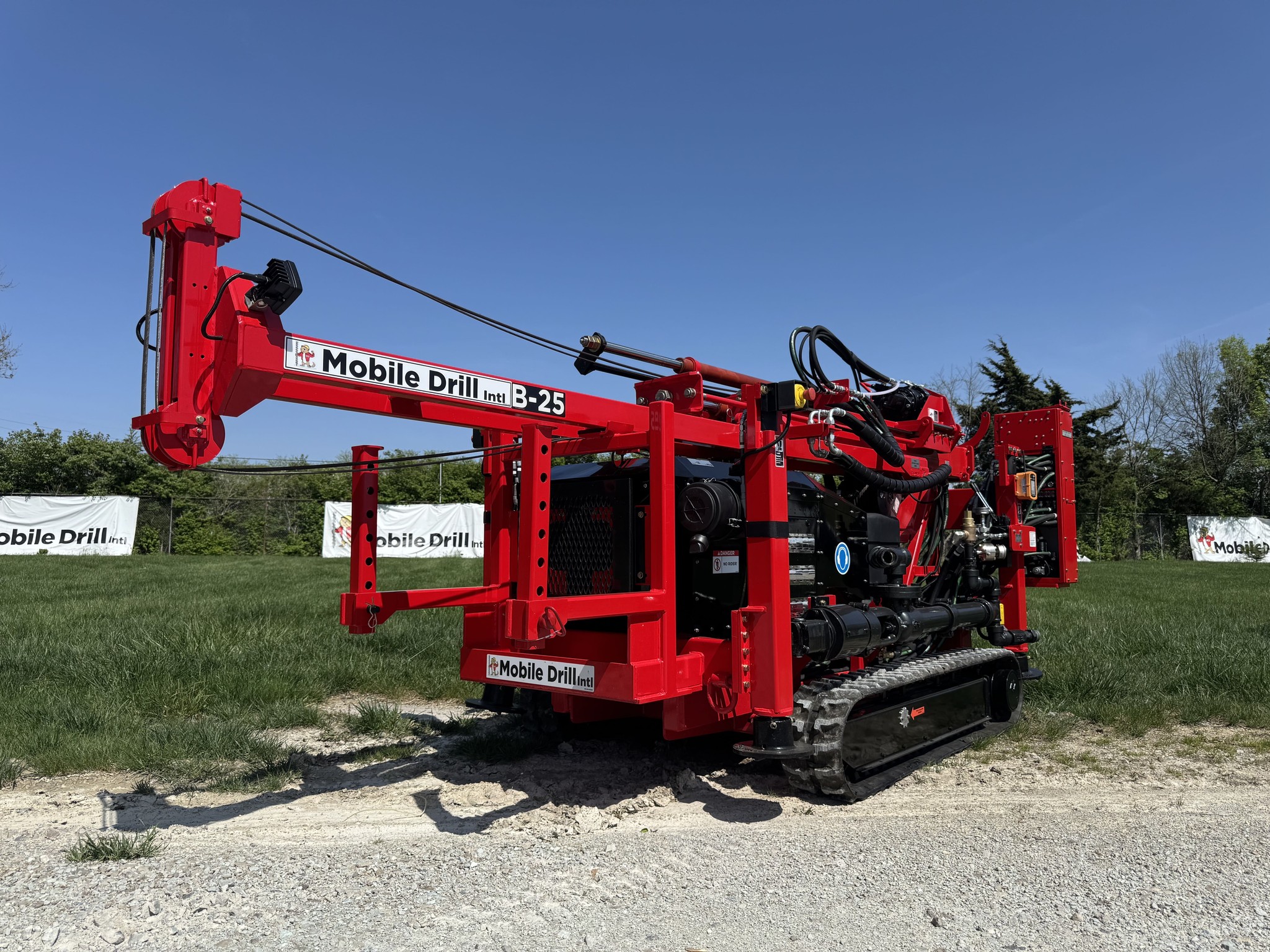

B25 Drill rig

Compact, versatile, and powerful, the B25 is ideal for shallow geotechnical and environmental drilling. Available on tracks under 8,000 lbs or truck-mounted on an F-350 or F-450, it’s designed for under-CDL applications—making it a great fit for both new and experienced operators.

Powered by a 44 hp Kubota engine, the 4-speed hydraulic top head delivers up to 3,300 ft-lbs of torque in low gear and over 650 RPM in high gear. The standard piston water pump provides 43 GPM at 300 PSI, with optional 3L6 and 3L4 pumps available to meet varying job requirements.

Standard features include an auger-to-rotary quick-change system, SPT hammer, and wireline capability. Optional equipment such as rod clamps, breakout wrenches, extruders, and alternative water pumps enhance its flexibility for multi-purpose geotechnical drilling.

Easy to transport, quick to set up, and built for long-term reliability, the B25 delivers performance and efficiency in a compact package
