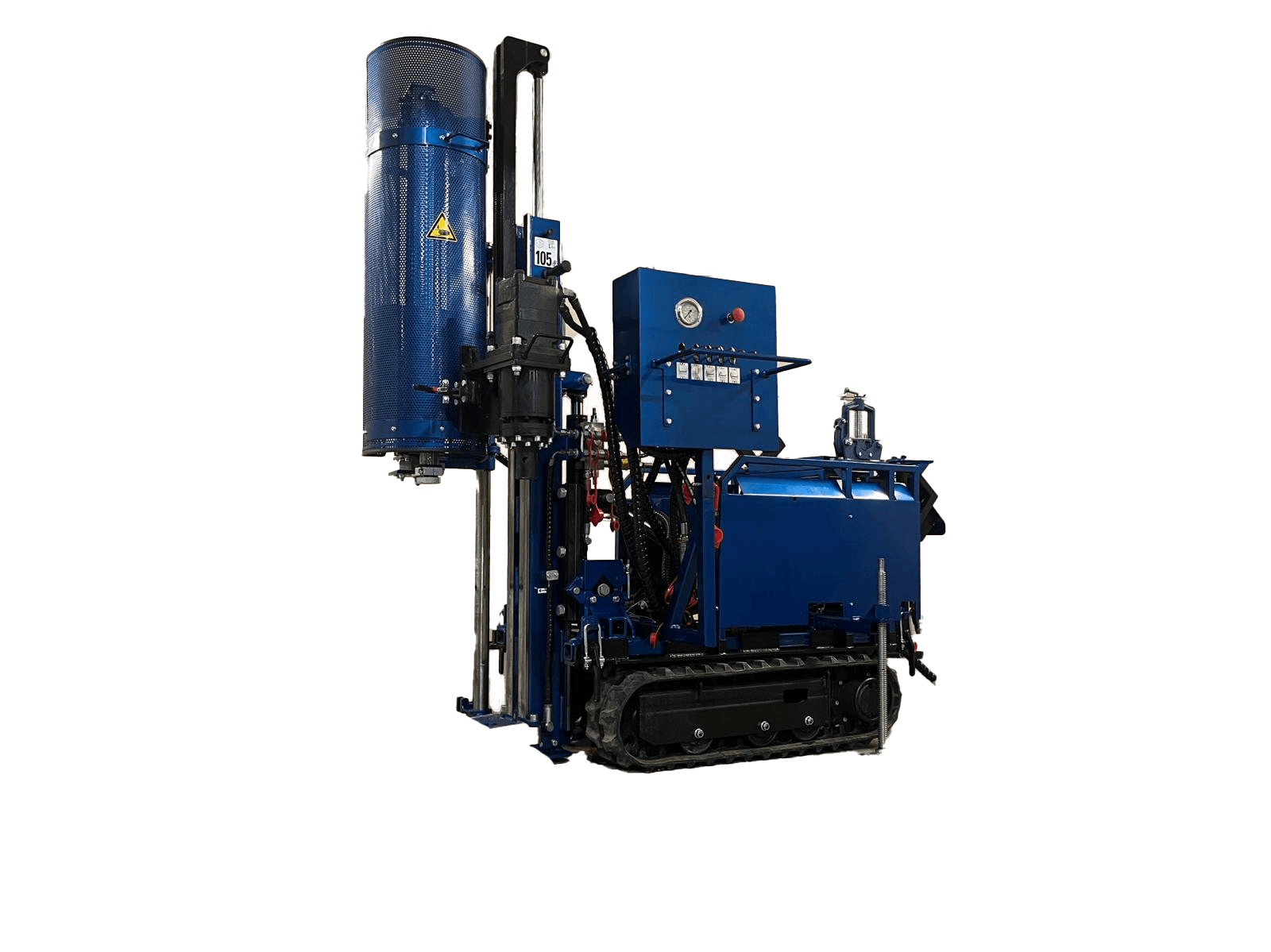

LSMR-FSX

The LSMR-FSX is the perfect solution for limited access work. Optimized for basement work, tight residential lots, and indoor drilling, it fits through house doors and operates between buildings. The rig can be fully disassembled without tools for transport into restricted areas and is capable of operating with or without the undercarriage.

Contact Now
Brochure
LSMR-FSX Brochure
Download

Download

Specification
PERFORMANCE & TOOLING CAPABILITY

  • 1,100 ft-lb max. torque at 2,900 psi

  • Works with 3 ft tooling

  • Pullback capacity: 12,000 lbs - for auger and SPT tooling

  • Integrated SPT auto-hammer

  • Integrated rotary drive for drilling and sampling applications

  • Quick-change tooling via removable hand winch and load beam

POWER & UTILITIES

  • Powered by external hydraulic power pack

    • Flow: 12 gpm

    • Pressure: 2,300 psi

DIMENSIONS & WEIGHT

  • Machine weight: approx. 2,650 lbs

  • Transport width (min): 29 in - fits through standard doorways

  • Working height (max): 8 ft - designed for basements and low-ceiling work

OPERATION & STABILITY

  • Rotating operator console for safe visibility in confined areas

  • Hydraulic mast height adjustment

  • 4 outriggers for stable setup on uneven ground

  • Ground anchors to increase available downforce when needed

WORKSITE CONVENIENCE

  • Onboard workbench with vise and practical storage options
