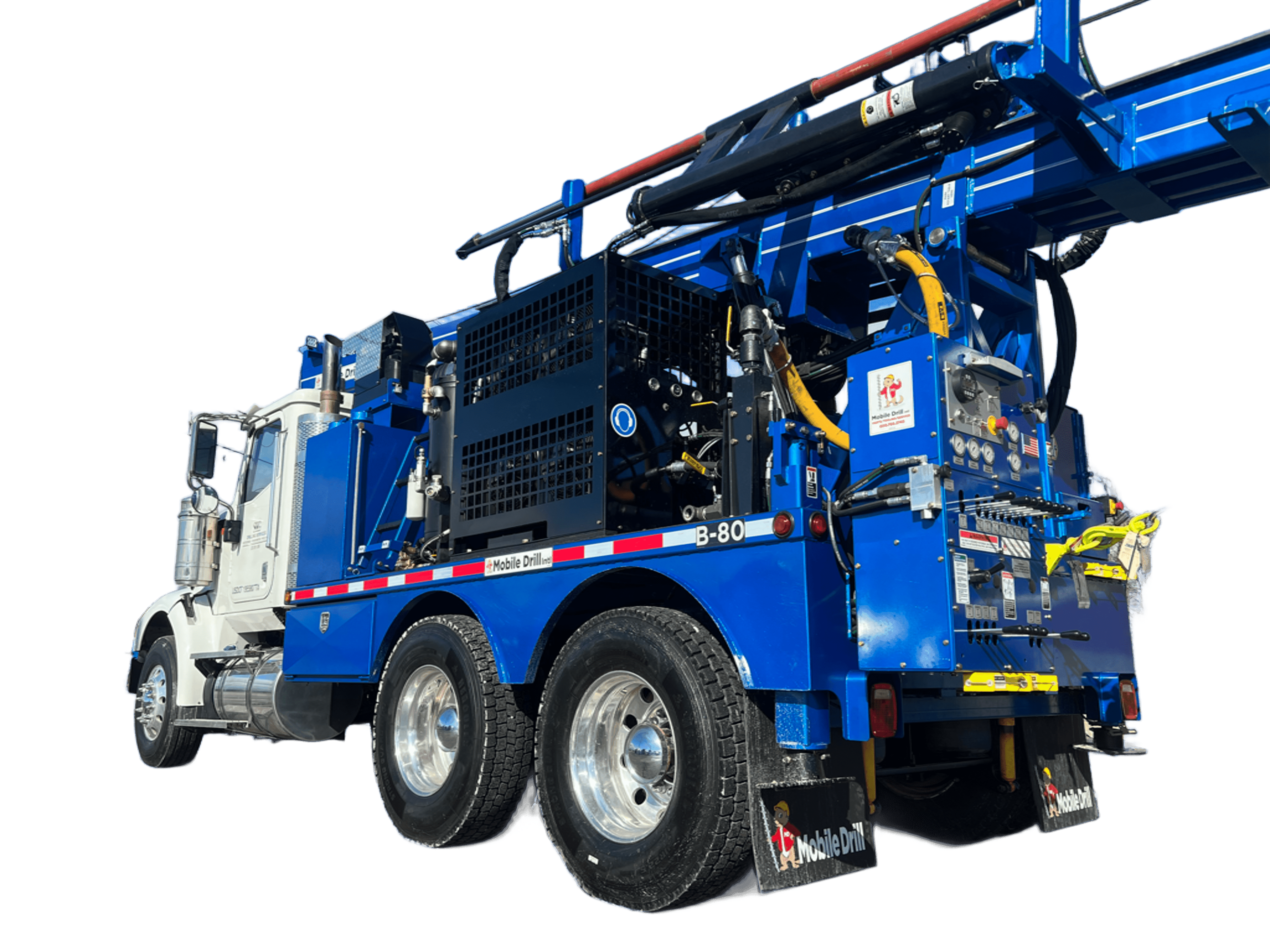

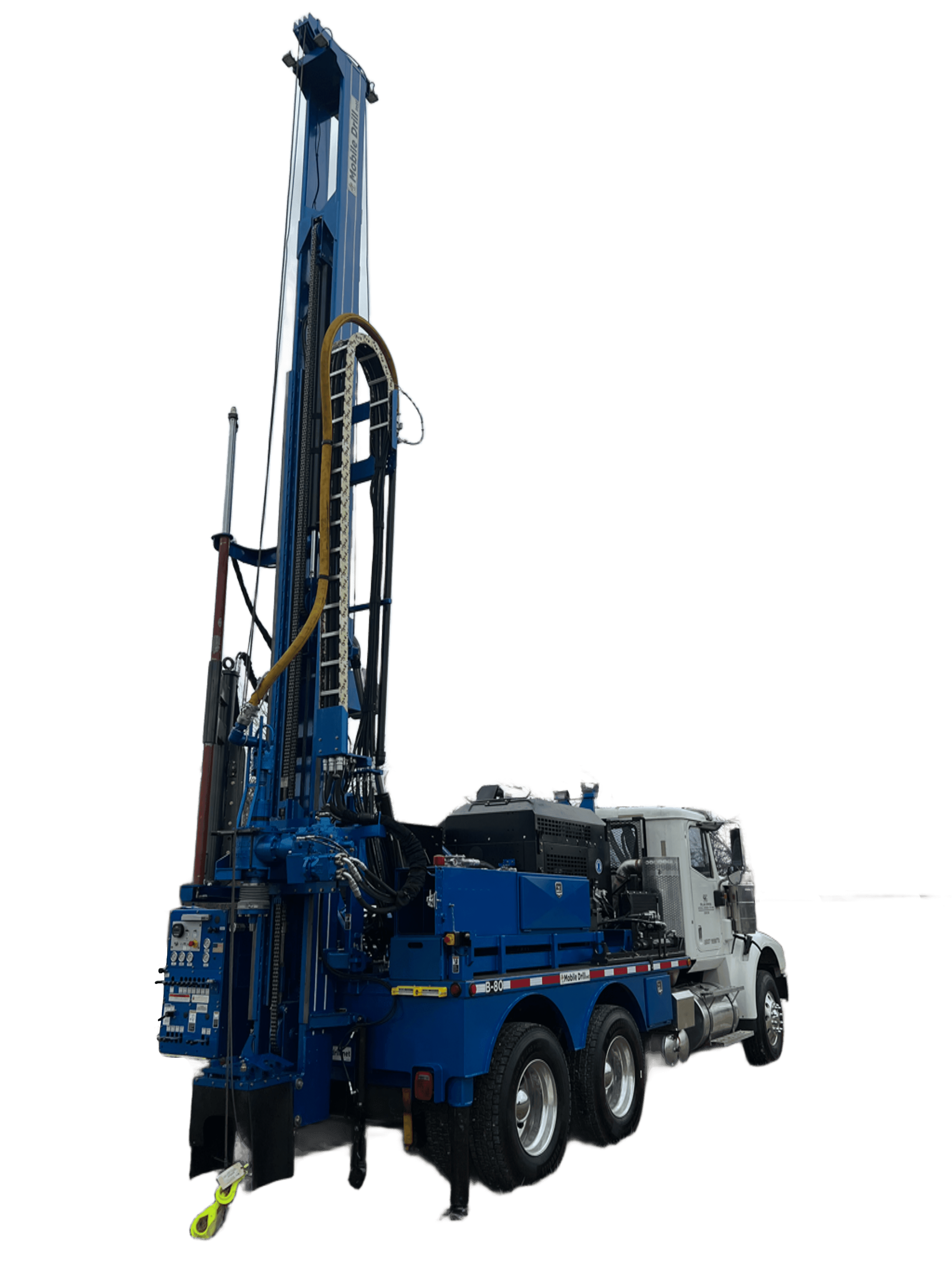

HYDRAULIC FEED SYSTEM

• Pulldown Force: 18,400 lbs (8,346 kg)

• Retract Force: 24,500 lbs (11,113 kg)

• Feed Speed, Down: 0-65 ft/min (19.81 m/min) Low, 0-162 ft/min (49.38 m/min) High

• Feed Speed, Retract: 0-48 ft/min (14.63 m/min) Low, 0-122 ft/min (37.19 m/min) High

• Feed Stroke: 14’ (4.27 m), Optional 22-ft (6.71 m) or 24-ft (7.32 m)

• Angle Drill Capable

POWER UNIT

• Deck Engines: Cummins, Deutz Diesel

• PTO: Transmission or Transfer Case

HYDRAULIC PUMPS

• Primary Pump: 36 gpm (136.3 l/min)

• Auxiliary Pump: 24 gpm (90.85 l/min)

DRILL HEAD ROTARY

• Maximum Rotary Speed: 837 rpm (87.65 rad/s)

• Torque: 8,600 ft-lbs (11,660 Nm)

• 15 in (381 mm) Off Hole Side Slide

• 10-Speed

ESTIMATED OPERATING CAPACITIES

• Hollow Stem Auger, 4-1/4 in (108 mm) ID: 250 ft (76.2 m)

• Continuous Flight Auger, 6 in (152 mm) OD: 400 ft (121.92 m)

• Rotary Drilling, 4-1/2 in (114.3 mm) OD Drill Pipe: 1,800 ft (548.64 m)

• Diamond Core Drilling NQ: 5,000 ft (1,524 m)

• Reverse Circulation, 4-1/2 in (114.3 mm) CIP Drill Pipe: 1,200 ft (365.76 m)

HOIST

MAIN

• Single Line Capacity: 12,000 lbs [5,443.1 kg]

• Line speed: 52 ft/min [15.85 m/min]

• Cable diameter: 5/8 in (.625) [15.9 mm]

• Cable length: 100 ft [30.5 m] standard

MAIN

• Single Line Capacity: 8,500 lbs [3,855.5 kg]

• Line speed: 0–75 ft/min [0–22.9 m/min], 0–325 ft/min [0–99.1 m/min] reverse

• Cable diameter: 1/2 in (.500) [12.7 mm]

• Cable length: 100 ft [30.5 m] standard

AUXILIARY

• Single Line Capacity: 4,500 lbs [2,041.2 kg]

• Line speed: 0–135 ft/min [41.2 m/min]

• Cable diameter: 5/16 in (.325) [8.3 mm]

• Cable length: 100 ft [30.5 m] standard

WIRELINE

• Single Line Capacity: 1,200 lbs [544.3 kg]

• Line speed: 0–500 ft/min [0–152.4 m/min]

• Cable diameter: 3/16 in (.185) [4.7 mm]

• Cable length: 400 ft [121.9 m] standard

• Winch capacity: 3,500 ft [1,066.8 m] cable

SAFE-T DRIVER/WIRELINE

• Single Line Capacity: 900 lbs [408.23 kg]

• Line speed: variable up, freefall down

• Cable diameter: 1/4 in (.250) [6.4 mm]

• Cable length: 300 ft [91.4 m] standard

OPTIONAL EQUIPMENT

• Above Deck Combination Auger/Rod Rack

• Front mounted auger rack

• Swing-Out Under Body Auger Racks

• Rod Trough

• Rod Loader

• Jib Boom

• Toolboxes

• Water Pumps

• Water Tanks

• Break-Out Wrench

• Make/Break Rod Clamp System

• Tool Guide

• Driller Platform

SPT AUTOMATIC HAMMER

• ASTM D-1586 Standards, Standard Duty and Heavy Duty

• 140 lb (63.5 kg), 170 lb (77.1 kg), 300 lb (136.1 kg), 340 lb (154.2 kg) Slugs Available

• Hydraulic Compensated

• Self Compensating Optional

LEVELING JACKS

• Single Front/Dual Rear, 24 in (609.6 mm) OR

• 36 in (914.4 mm) Stroke

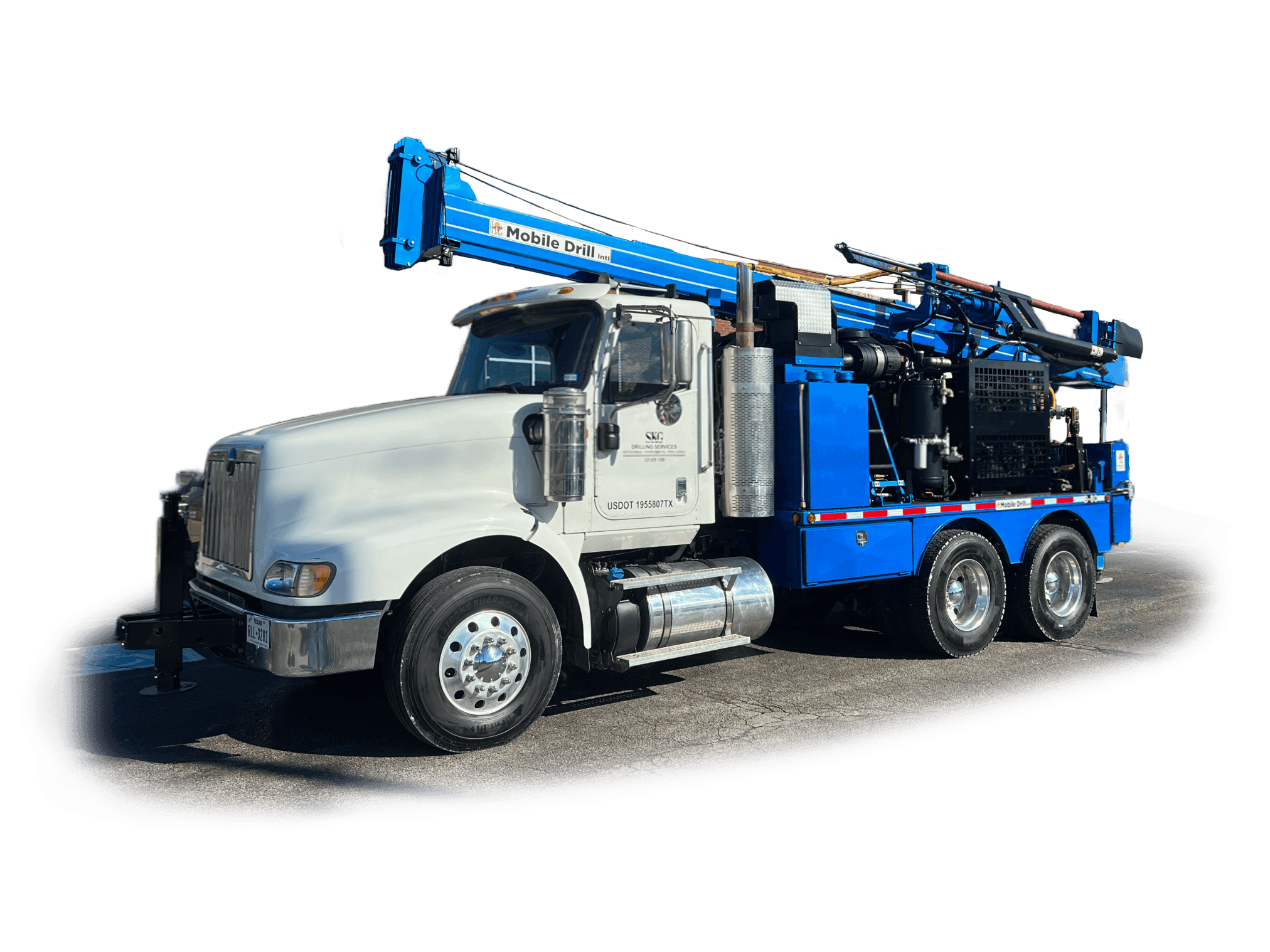

MOUNTING OPTIONS

• Truck

• Tractor

• Dozer

• Rubber Track

• Skid
