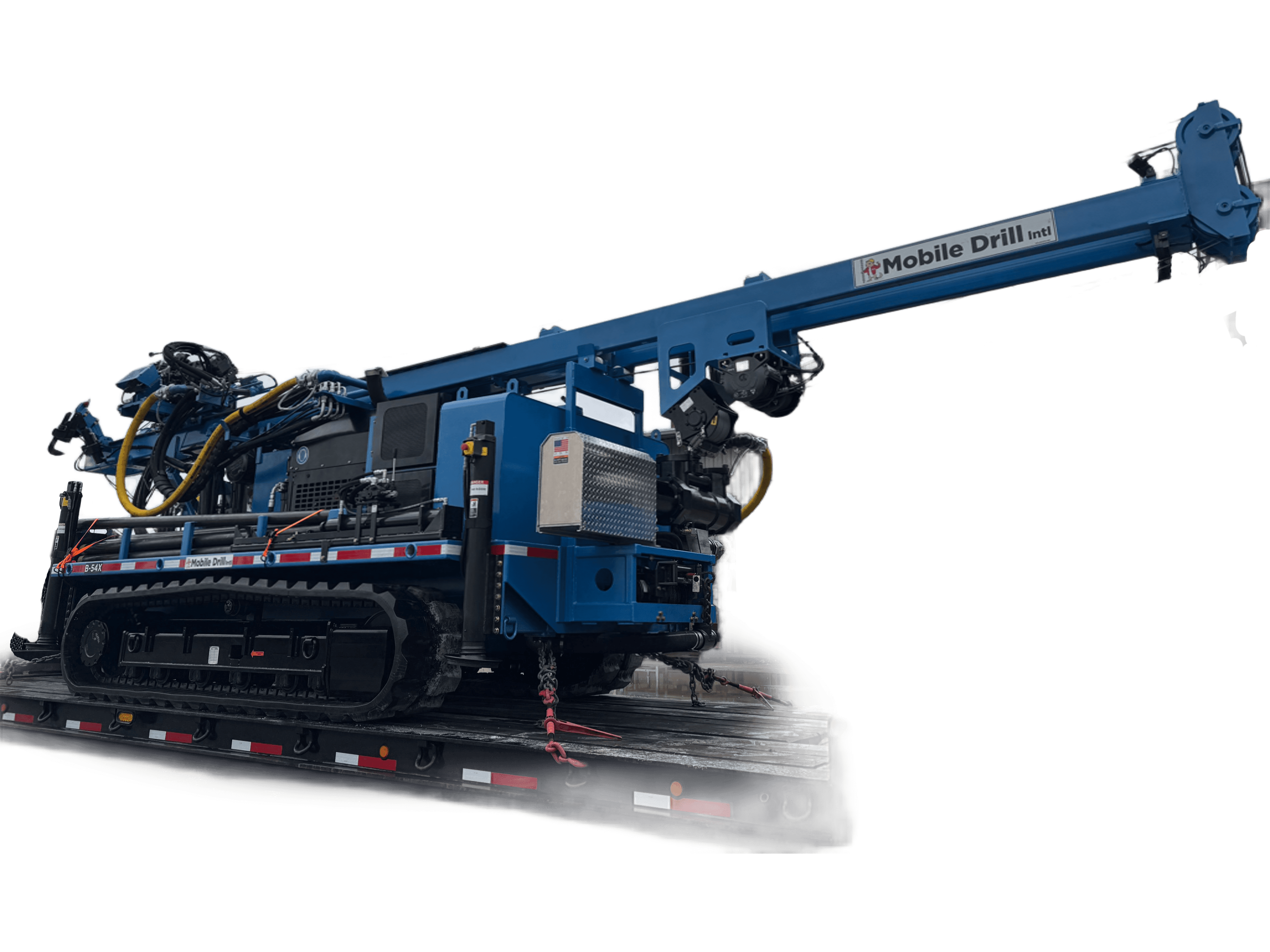

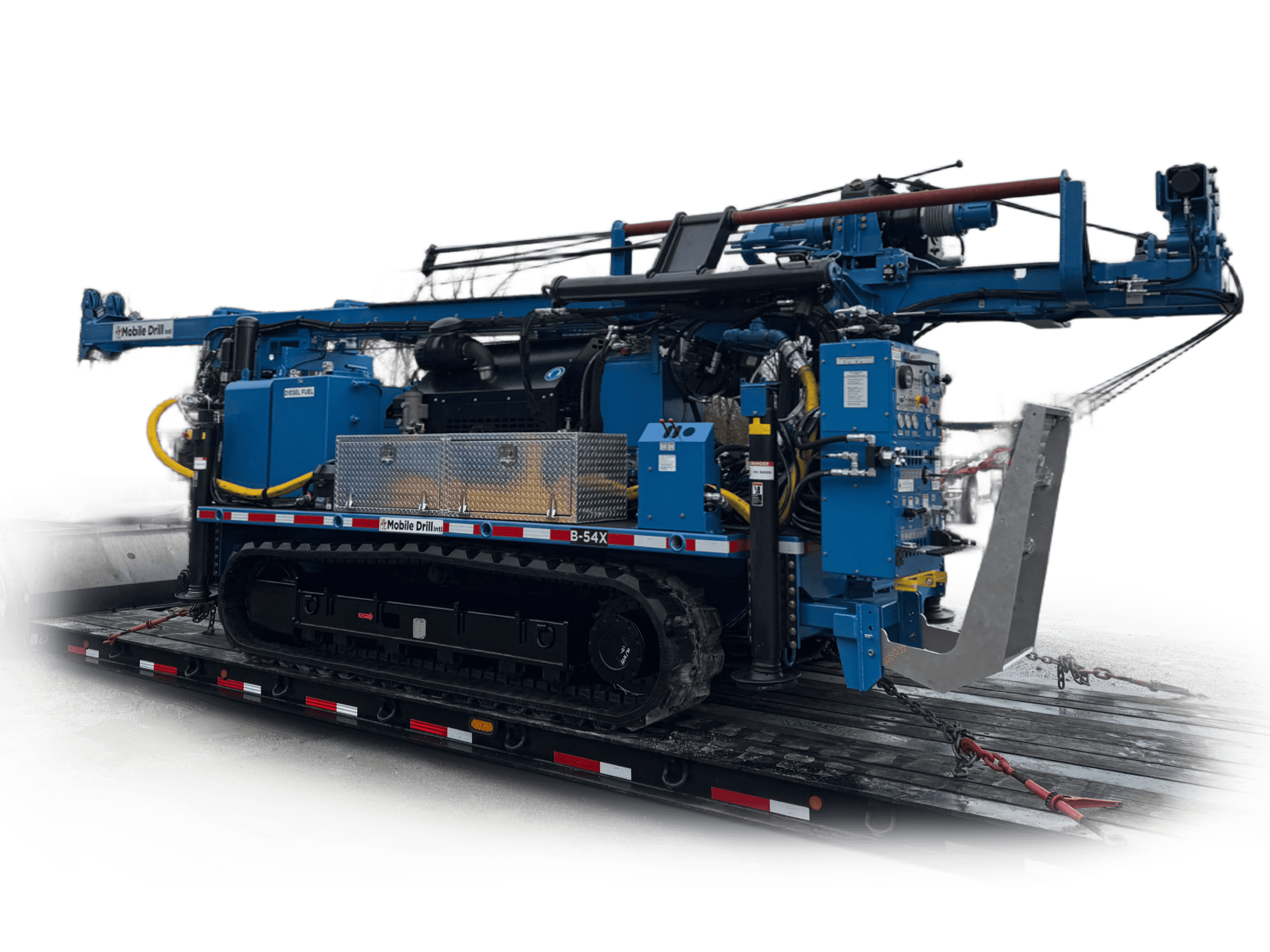

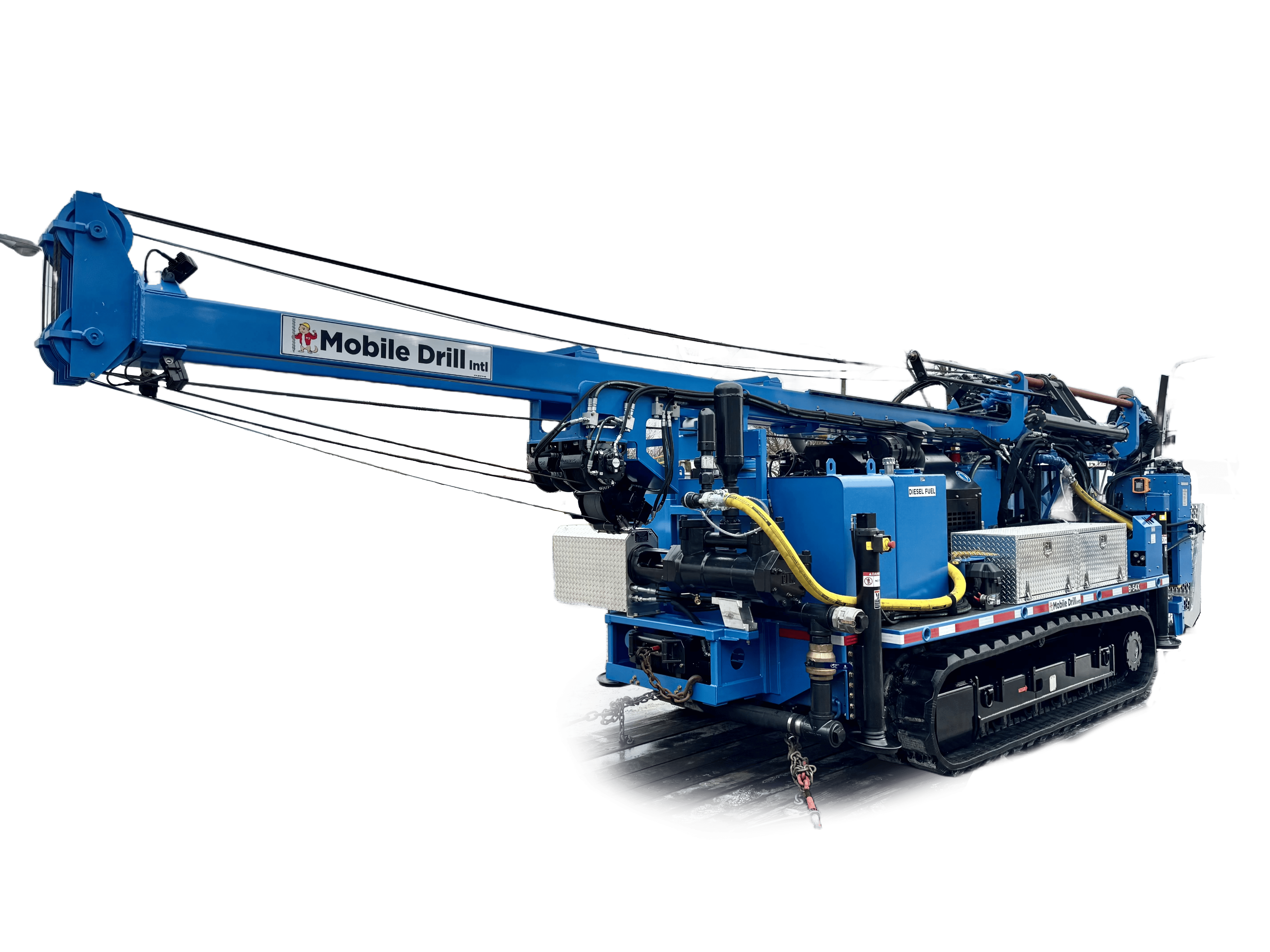

HYDRAULIC FEED SYSTEM

• Pulldown force: 16,200 lbs [7,348 kg]

• Retract force: 24,000 lbs [10,886 kg]

• Feed speed, down: 0-74 ft/min [0-23 m/min], 0-149 ft/min [0-45 m/min]

• Feed speed, retract: 0-50 ft/min [0-15 m/min], 0-100 ft/min [0-30 m/min]

• Feed stroke: 13 ft [3.96 m]

• Angle Drilling Capable

POWER UNIT

• Deck Engines: John Deere, Cummins, Deutz Diesel

• PTO: Transmission or Transfer Case

DRILL HEAD ROTARY

• 8 Speeds

• 4-5/8 in [118 mm] ID Open Spindle

• No Chains, No Right Angle Drive

• Drive: Helical Gear

• Max Chuck Size: P Wireline

• Maximum Rotary Speed: 1,055 rpm

• Maximum Torque: 8,000 ft-lbs [10,847 Nm]

ESTIMATED OPERATING CAPACITIES

• Hollow Stem Augers, 4-1/4 in [108 mm] ID: 175 ft [53 m]

• Continuous Flight Auger, 6 in [152 mm] OD: 300 ft [91 m]

• Rotary Drilling, 4-1/2 in [114 mm] OD Drill Pipe: 600 ft [183 m]

• Diamond Core Drilling, N Wireline: 2,500 ft [762 m]

• Reverse Circulation: 4-1/2 in [114 mm] CIP Drill Pipe: 600 ft [183 m]

Note: Above drilling capacities may vary according to subsurface conditions and rotary head option.

HOIST OPTION

MAIN

• Single Line Capacity: 12,000 lbs [5,443 kg]

MAIN

• Single Line Capacity: 8,500 lbs [3,856 kg]

AUXILIARY

• Single Line Capacity: 4,500 lbs [2,041 kg]

WIRELINE - A WIDE VARIETY AVAILABLE

• Line Capacities from 700 ft [213 m] to 7,500 ft [2,286 m]

SAFE-T DRIVER

• Single Line Capacity: 900 lbs [408 kg]

SPT AUTOMATIC HAMMER

• ASTM D-1586 Standards – Standard and Heavy Duty

• 140 lb [63.5 kg], 170 lb [77.1 kg], 300 lb [136.1 kg], 340 lb [154.2 kg] Slugs Available

OPTIONAL EQUIPMENT

• Angle Drilling

• Mast Dump (Vertical Mast Slide)

• In-Out & Sideways Slide Base

• SPT Automatic Hammer, ASTM D-1586, 140 lb [64 kg], 170 lb [77 kg], 300 lb [136 kg], 340 lb [154 kg] Slugs Available

• Custom Breakout Table Designs

• Make/Break Double Rod Clamp System

• Hydraulic Breakout Wrench

• Water Pumps – Piston, Centifugal and Progressive Cavity

• Water/Foam Injection Systems

• Air Compressors

• Jib Boom Hoist

• Swing-Out Under Body Auger Racks

• Rod Trough

• Rod Loader

• Water Tanks

• Driller/Helper Platforms

• Safety Cage Options

• Night Lights
