HYDRAULIC FEED SYSTEM

• Pulldown force: 31,400 lbs [14,242 kg]

• Retract force: 24,000 lbs [10,886.2 kg]

• Feed speed, down: 0-127 ft/min [0-38.7 m/min]

• Feed speed, retract: 0-95 ft/min [0-28.96 m/min]

• Feed stroke: 78 in [1.98 m]

• Angle Drill Capable

POWER UNIT

• Deck Engines: John Deere Standard, Other Options Available

• PTO OPTIONS AVAILABLE

DRILL HEAD ROTARY

• Maximum Rotary Speed: 837 RPM [87.65 rad/s]

• Torque: 6,588 ft-lbs [8,932 Nm]

• 10 Speeds

ESTIMATED OPERATING CAPACITIES

• Hollow Stem Auger, 3-1/4 in [108 mm] ID: 150 ft [45.72 m]

• Continuous Flight Auger, 6 in [152 mm] OD: 300 ft [91.44 m]

• Continuous Flight Auger, 14 in [365 mm] OD: 60 ft [18.27 m]

• Rotary Drilling, NW 1,000 ft [304.8 m]

• Diamond Core Drilling, NQ: 1,200 ft [365.76 m]

Note: Above drilling capacities may vary according to subsurface conditions and rotary head option.

HOIST OPTION

MAIN

• Single Line Capacity: 6,000 lbs [2,722 kg]

AUXILIARY

• Single Line Capacity: 3,000 lbs [1,361 kg]

SAFE-T DRIVER

• Single Line Capacity Available

WIRELINE

• Single Line Capacity: 3,000 lbs [1,361 kg]

SPT AUTOMATIC HAMMER

• ASTM D-1586 Standards – Standard and Heavy Duty

• 140 lb [63.5 kg], 170 lb [77.1 kg], 300 lb [136.1 kg], 340 lb [154.2 kg] Slugs Available

OPTIONAL EQUIPMENT

• In-out Slide Base/Side-to-Side Slide Base

• Adjustable Auger Guide Support

• Above Deck Combination Auger/Rod Rack

• Front-Mounted Auger Rack

• Swing-Out Underbody Auger Racks

• Toolboxes

• Water Pumps

• Water Tanks

• Break-Out Wrench

• Rod Clamp

• Hydraulic Chuck

• Auger Guide

• Driller Platform

MOUNTING OPTIONS

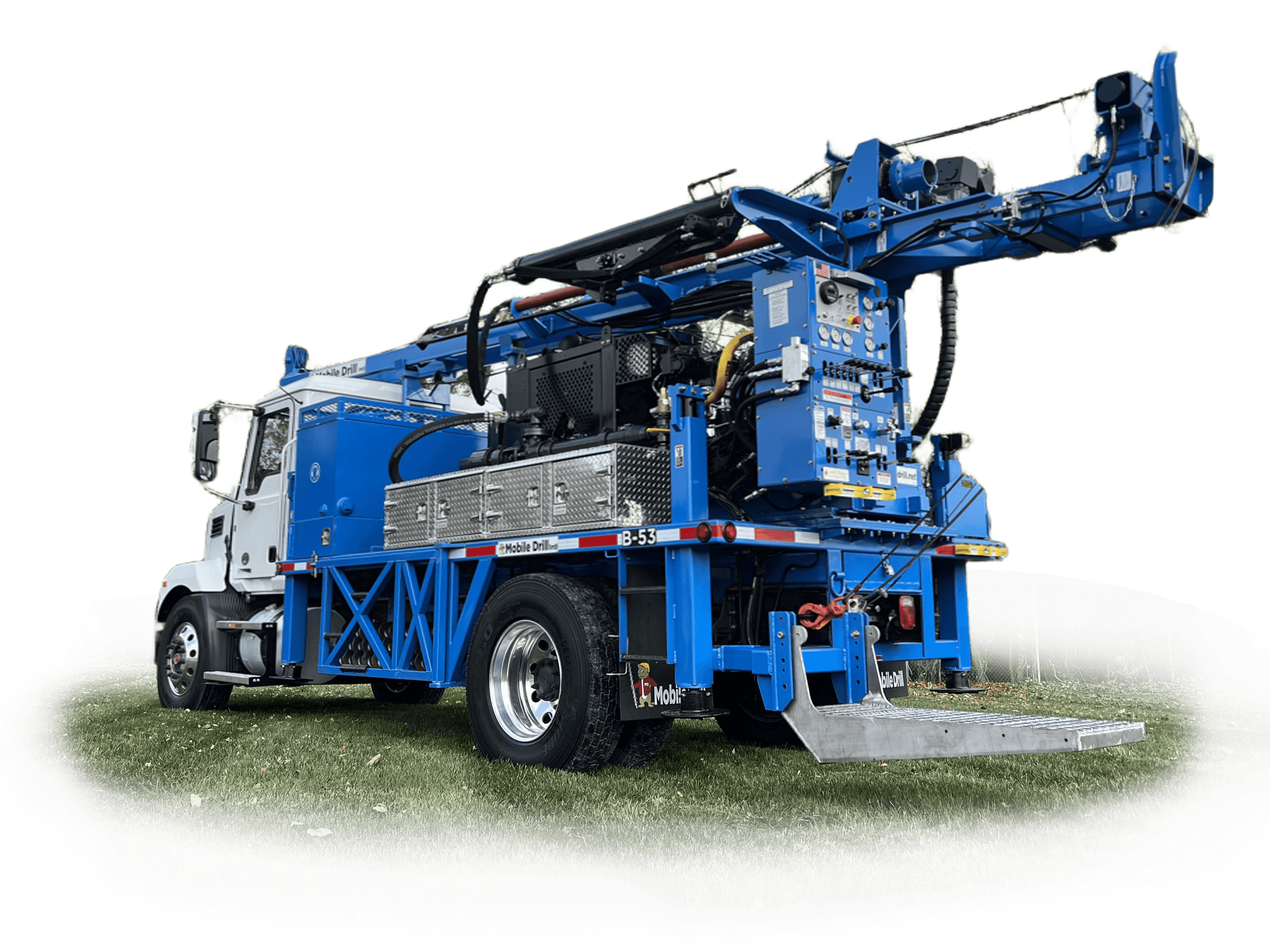

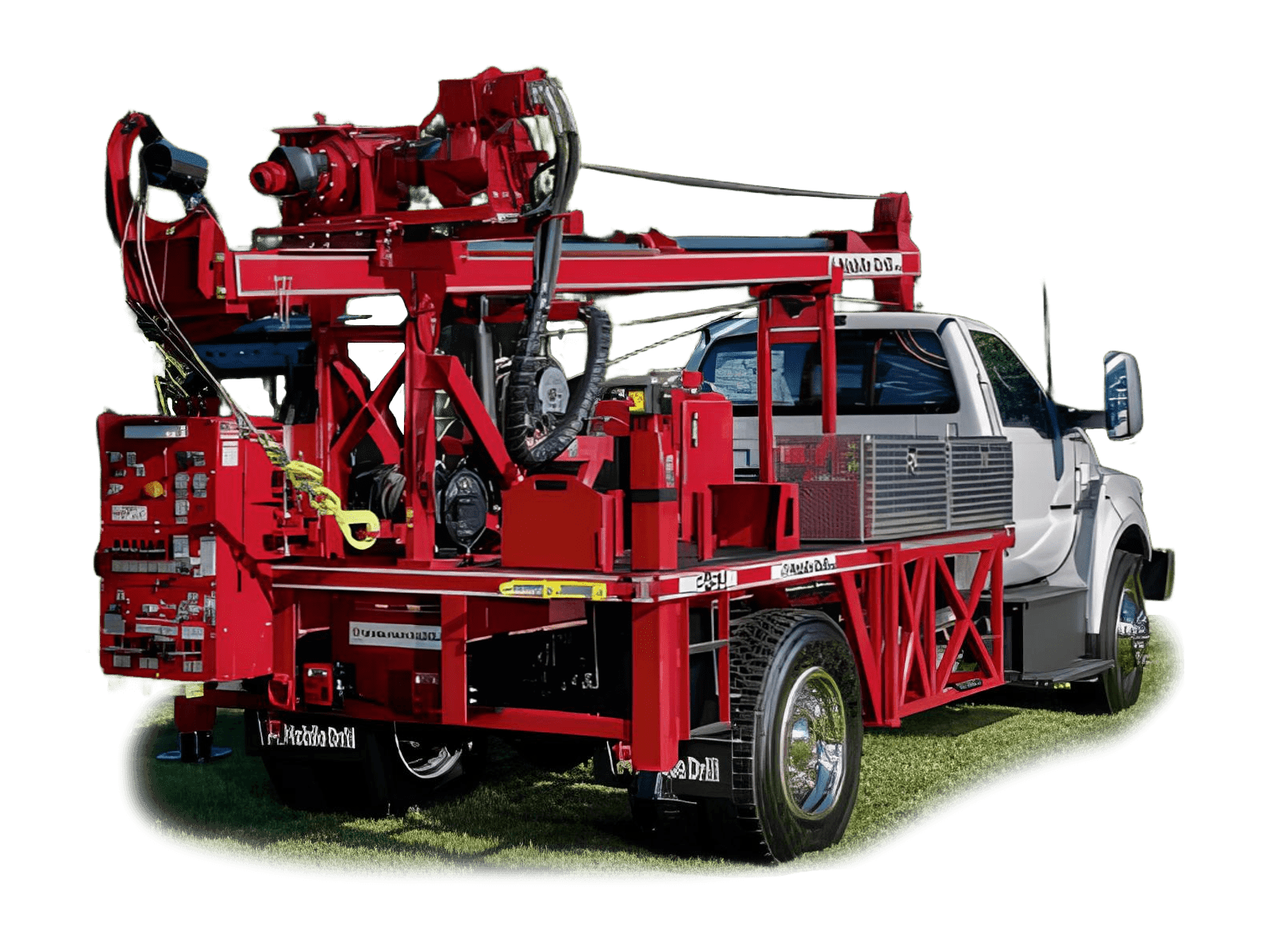

• Truck

• Tractor

• Dozer

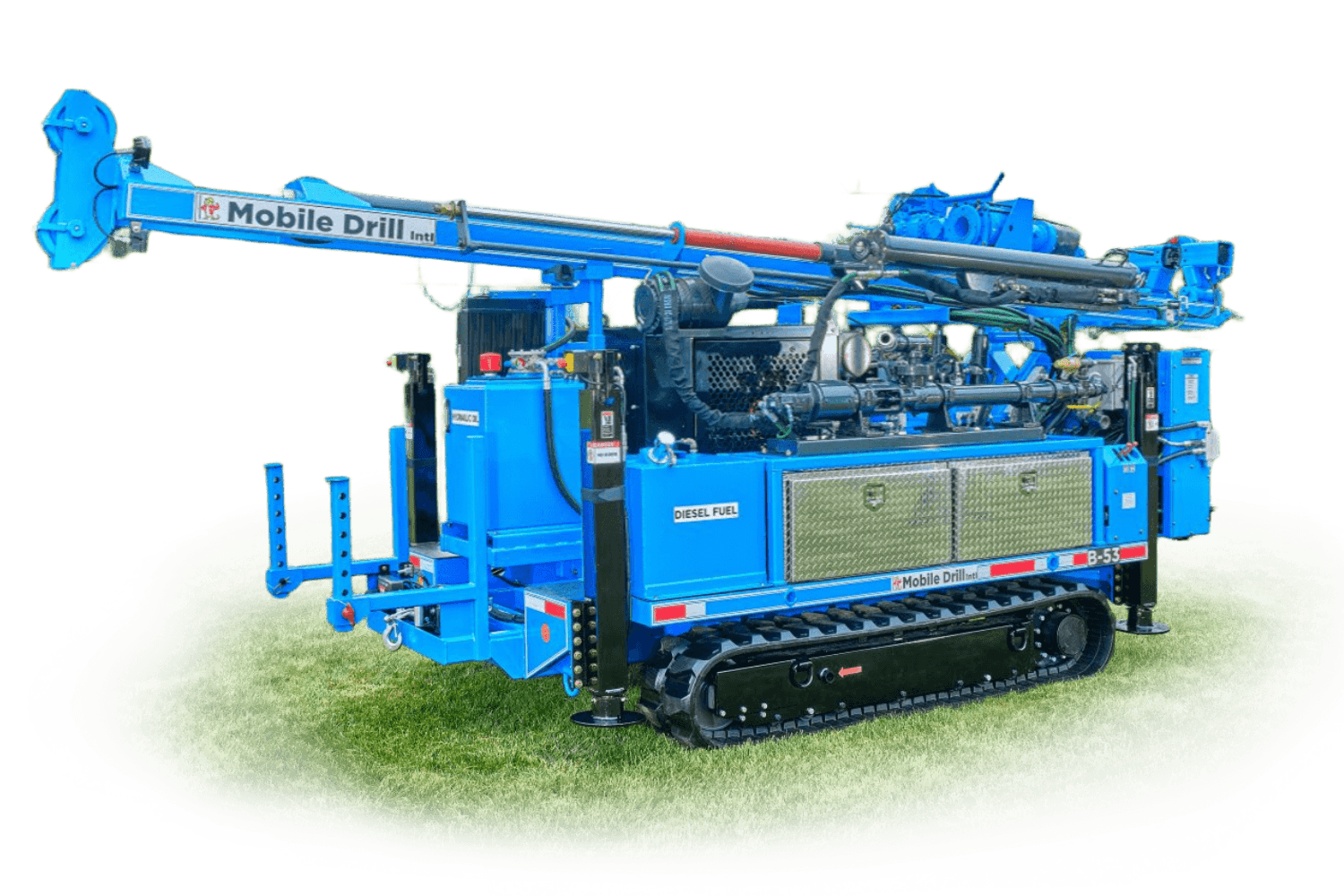

• Rubber Track

• Skid
