HYDRAULIC FEED SYSTEM

• Pulldown force: 16,200 lbs [7,348 kg]

• Retract force: 24,000 lbs [10,886.2 kg]

• Feed speed, down: 71 ft/min [21.6 m/min]

• Feed speed, retract: 48 ft/min [14.6 m/min]

• Feed stroke: 6 ft [1.83 m]

• Angle Drilling Capable

POWER UNIT

• Deck Engines: John Deere Tier 3, 125 HP (93 kW) or Deutz Tier 3, 116 hp (86.5 Kw)

• Engines include: 12V starting circuit, electronic engine module installed in the operators control panel, 40 gallon (151 l) fuel tank with lock, lockable battery box, cold weather starting package.

HYDRAULIC PUMPS

• Primary Pump: 45 gpm (170.3 l/min)

• First auxiliary Pump: 25 gpm (94.6 l/min)

• Second auxiliary Pump: 25 gpm (94.6 l/min)

DRILL HEAD ROTARY OPTIONS

X-SERIES DRILL HEADS

• 8-SPEEDS

• Open bore: 4-5/8 in [118 mm]

• Maximum rotary speed: 1,000 rpm

• Maximum torque: 8,000 ft-lb [10,847 Nm]

• 8-SPEEDS

• Open bore: 4-5/8 in [118 mm]

• Maximum rotary speed: 1,200 rpm

• Maximum torque: 5,000 ft-lb [6,779 Nm]

• 4-SPEEDS

• Open bore: 5-1/8 in [130.2 mm]

• Maximum rotary speed: 1,200 rpm

• Maximum torque: 9,800 ft-lb [13,287 Nm]

SPT AUTOMATIC HAMMER

• ASTM D-1586 standards, standard duty and heavy duty 140 lb [63.5 kg]

• 170 lb [77.1 kg]

• 300 lb [136.1 kg]

• 340 lb [154.2 kg] slugs available

• Hydraulic self compensating

ESTIMATED OPERATING CAPACITIES (STANDARD ROTARY HEAD)

• Hollow stem augers, 3-1/4 in [82.6 mm] ID: 175 ft [53.3 m]

• Continuous flight auger, 6 in [152.4 mm] OD: 300 ft [91 m]

• Continuous flight auger, 14 in [355.6 mm] OD: 60 ft [18.3 m]

• Rotary drilling, NW: 1,500 ft [457 m]

• Diamond core drilling, N Wireline: 1,600 ft [487 m]

Note: Above drilling capacities may vary according to subsurface conditions and rotary head option.

HOIST

MAIN

• Single Line Capacity: 8,500 lbs [3,855.5 kg]

• Line speed: 0-75 ft/min [22.9 m/min], reverse

• Line speed – Reverse: 0-325 ft/min [0-99.1 m/min]

• Cable diameter: 1/2 in (.500) [12.7 mm]

• Cable length: 100 ft [30.5 m]

AUXILIARY

• Single Line Capacity: 4,500 lbs [2,041 kg]

• Line speed: 0–135 fpm [41.2 m/min]

• Cable diameter: 5/16 in (.325) [8.3 mm]

• Cable length: 75 ft [22.9 m] standard

SAFE-T DRIVER

• Single Line Capacity: 900 lbs [408.2 kg]

• Line speed: variable up, freefall down

• Cable diameter: 1/4 in (.250) [6.4 mm]

• Cable length: 300 ft [91.4 m] standard

WIRELINE

• A wide variety are available.

• Line Capacities from 700 ft [213 m] to 7,500 lbs [2,286 kg]

OPTIONAL EQUIPMENT

• Mast: 21 ft [6.4 m] or 31 ft [9.5 m]

• In-out slide base/Side-to-side slide base

• Adjustable auger guide support

• Above deck combination auger/rod rack

• Front mounted auger rack

• Swing out under body auger racks

• Water pumps

• Hydraulic chuck

• Break out wrench

• Rod clamp

• Make and Break clamp

• And much more!

LEVELING JACKS

• Single Front/Dual Rear, 36 in (914.4 mm) stroke

MOUNTING OPTIONS

• Truck

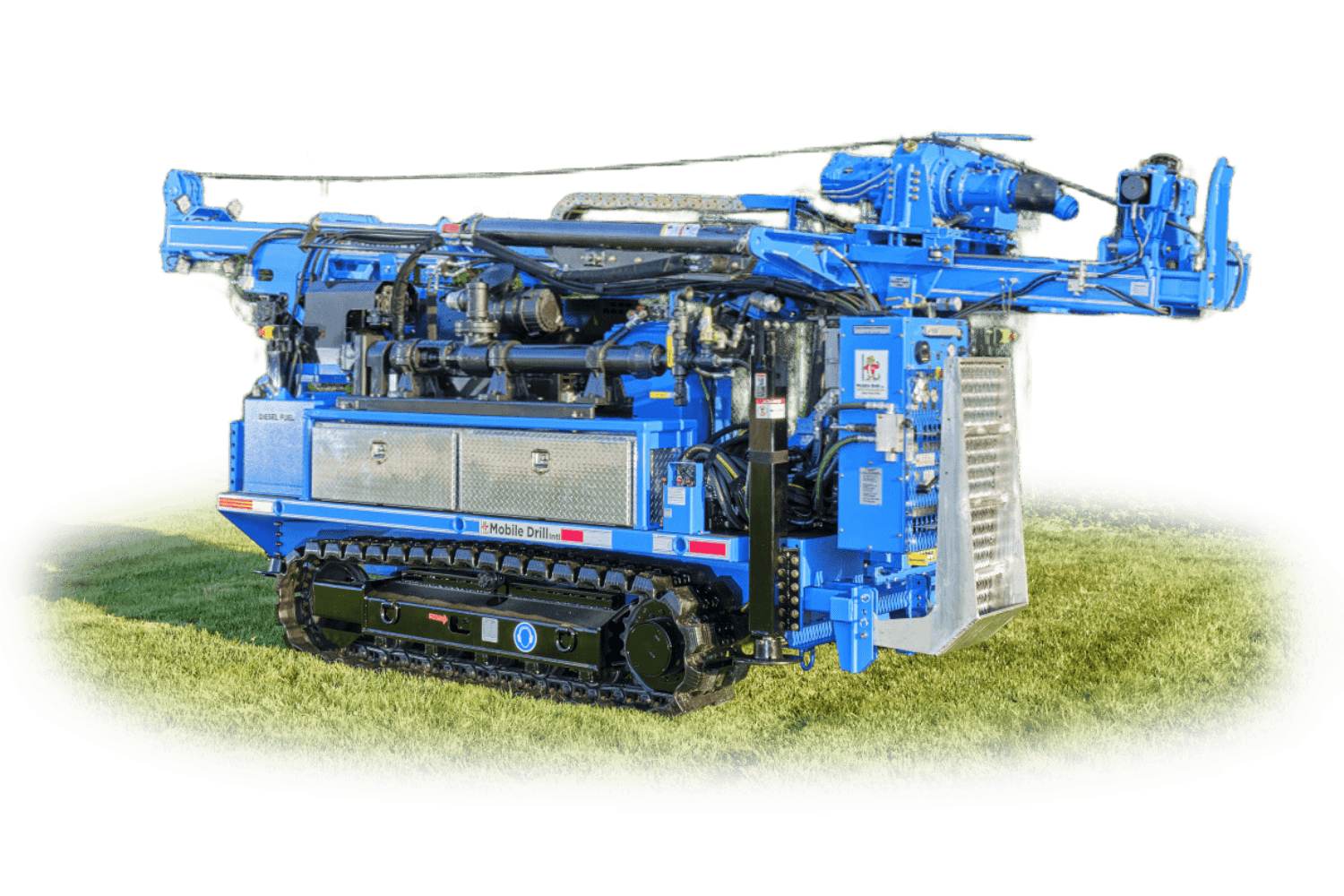

• Track carrier
