HYDRAULIC FEED SYSTEM

• Pulldown force: 11,780 lbs [5,343 kg]

• Retract force: 15,700 lbs [10,886 kg]

• Feed speed, down: 0-100 ft/min [30.5 m/min]

• Feed speed, retract: 0-80 ft/min [24.4 m/min]

• Feed stroke: 6 ft [1.83 m]

POWER UNIT

• Diesel Engine: 140 HP (104 kW) Engine – Tier 4 available upon request

• Engines include: 12V starting circuit, electronic engine module installed in the operators control panel, 40 gallon (151 l) fuel tank with lock, lockable battery box, cold weather starting package.

HYDRAULIC PUMPS

• Primary Pump: 36 gpm (136.3 l/min)

• Auxiliary Pump: 24 gpm (90.85 l/min)

DRILL HEAD ROTARY

X-SERIES DRILL HEADS

• Drive: Helical gear

• Max chuck size: P Wireline

1. 8-SPEEDS Open bore: 4-5/8 in [118 mm] Maximum rotary speed: 1,055 rpm Maximum torque: 8,000 ft-lb [10,847 Nm]

2. 8-SPEEDS Open bore: 4-5/8 in [118 mm] Maximum rotary speed: 1,200 rpm Maximum torque: 5,000 ft-lb [6,779 Nm]

SPT AUTOMATIC HAMMER

• ASTM D-1586 standards, standard duty and heavy duty 140 lb [63.5 kg]

• 170 lb [77.1 kg], 300 lb [136.1 kg], 340 lb [154.2 kg] slugs available

ESTIMATED OPERATING CAPACITIES (STANDARD ROTARY HEAD)

• Hollow stem augers, 3-1/4 in [82.6 mm] ID: 175 ft [53.3 m]

• Continuous flight auger, 6 in [152.4 mm] OD: 300 ft [91 m]

• Continuous flight auger, 14 in [355.6 mm] OD: 60 ft [18.3 m]

• Rotary drilling, NW: 1,500 ft [457 m]

• Diamond core drilling, N Wireline: 1,600 ft [487 m]

Note: Above drilling capacities may vary according to subsurface conditions and rotary head option.

HOIST

MAIN

• Single Line Capacity: 8,500 lbs [3,855.5 kg]

• Line speed: 0-126 ft/min [0-22.9 m/min], 0-325 ft/min [0-99.1 m/mm] reverse

• Cable diameter: 1/2 in (.500) [12.7 mm]

• Cable length: 100 ft [30.5 m]

MAIN

• Single Line Capacity: 8,500 lbs [3,855.5 kg]

• Line speed: 0–75 ft/min [0–22.9 m/min], 0–325 ft/min [0–99.1 m/min] reverse

• Cable diameter: 1/2 in (.500) [12.7 mm]

• Cable length: 100 ft [30.5 m] standard

AUXILIARY

• Single Line Capacity: 3,000 lbs [1,361 kg]

• Line speed: 0–126 fpm [38 m/min]

• Cable diameter: 5/16 in (.325) [8.3 mm]

• Cable length: 75 ft [22.9 m] standard

SAFE-T DRIVER

• Single Line Capacity: 900 lbs [408.2 kg]

• Line speed: variable up, freefall down

• Cable diameter: 1/4 in (.250) [6.4 mm]

• Cable length: 300 ft [91.4 m] standard

WIRELINE

• A wide variety are available.

• Line Capacities from 700 ft [213 m] to 7,500 ft [2,286 m]

OPTIONAL EQUIPMENT

• 6-foot feed stroke for low overhead work or 13-foot feed stroke for longer drilling tools

• In-out slide base/Side-to-side slide base

• Adjustable auger guide support

• Above deck combination auger/rod rack

• Front mounted auger rack

• Swing out under body auger racks

• Water pumps

• Hydraulic chuck

• Break out wrench

• Rod clamp

• Make and Break clamp

• And much more!

MOUNTING OPTIONS

• Truck

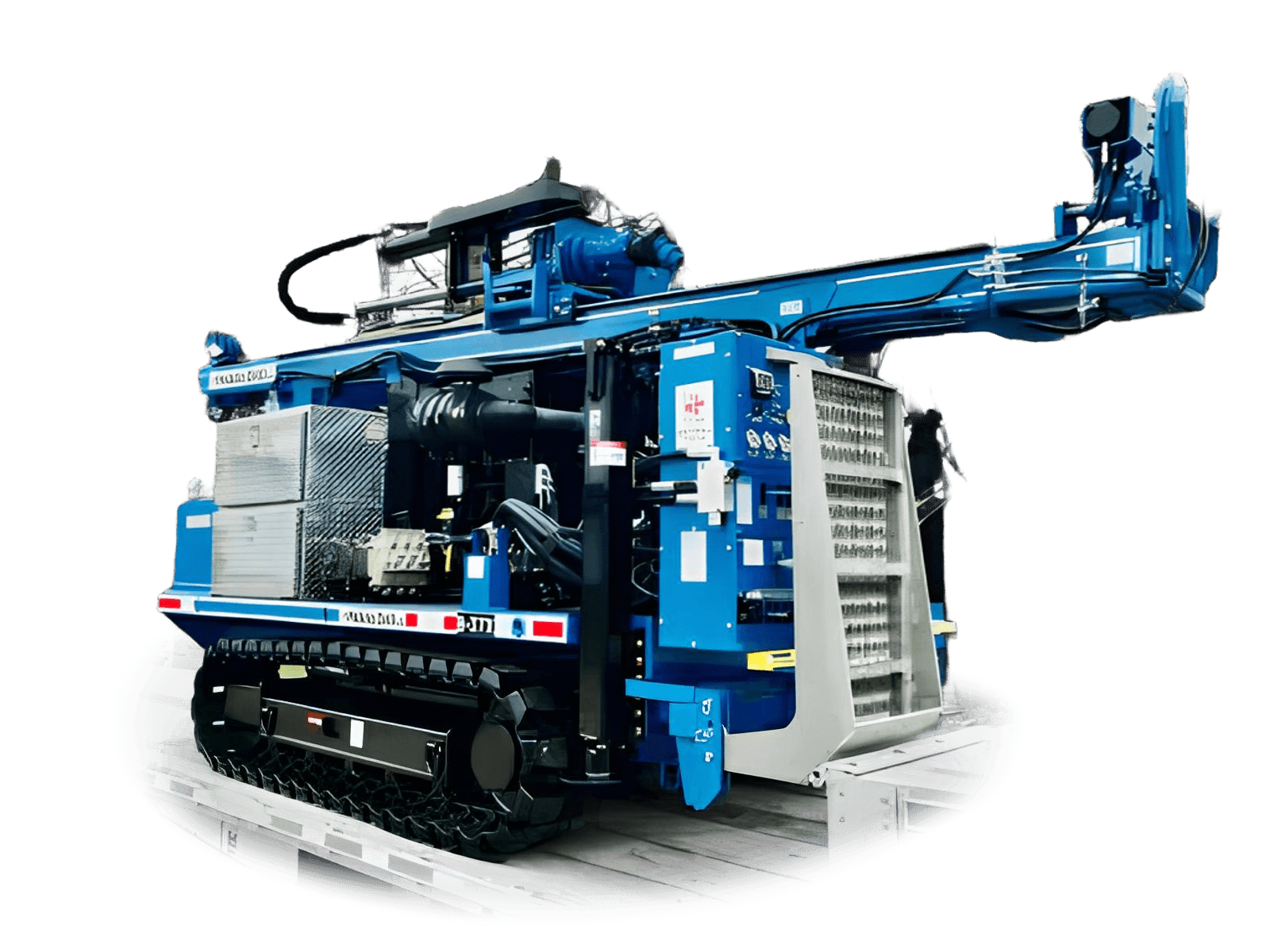

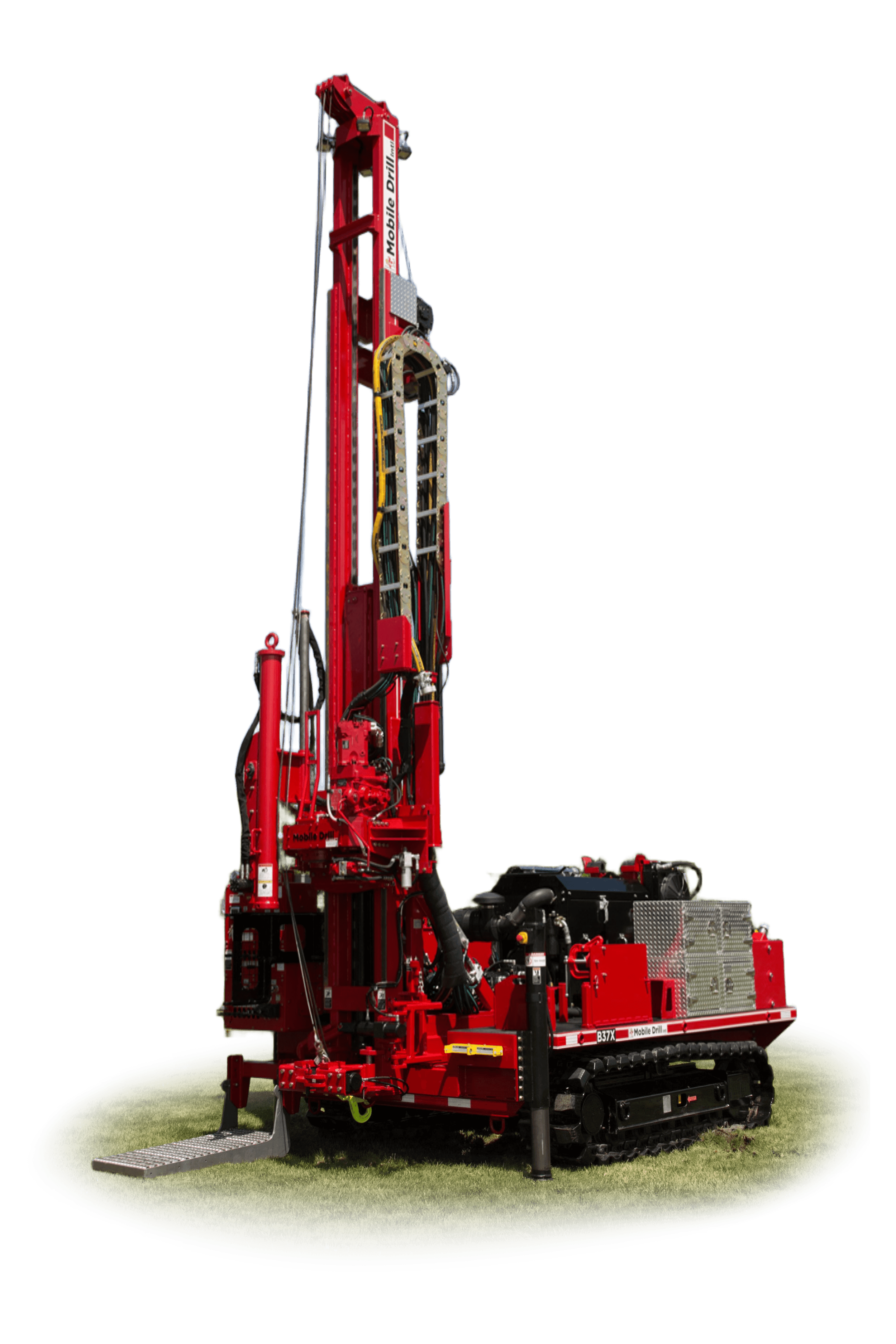

• Track carrier
