HYDRAULIC FEED SYSTEM

• Pulldown force: 9,753 lbs [4,424 kg]

• Retract force: 9,679 lbs [4,390 kg]

• Feed speed, down: 0-59 ft/min [0-18 m/min]

• Feed speed, retract: 0-98 ft/min [0-30 m/min]

• Feed stroke: 6.25 ft [1.9 m], Optional 13 ft [3.96 m]

POWER UNIT

• Deck Engines: John Deere, Cummins, Deutz Diesel

• PTO: Transmission Transfer Case

DRILL HEAD ROTARY

• 4 Speeds

• 2 Speed Planetary, 2 Speed Hydraulic Motor

• No Chains, No Right Angle Drive

• Maximum Rotary Speed: 770 rpm

• Maximum Torque: 4,200 ft-lb [5,694 Nm]

ESTIMATED OPERATING CAPACITIES

• Hollow Stem Augers: to 100 ft [30 m]

• Continuous Flight Augers, 6 in [152 mm] OD: 125 ft [38 m]

• Rotary Drilling, 2-5/8 in [67 mm] OD Drill Pipe: 300 ft [91 m]

• Diamond Core Drilling, N Wireline: 300 ft [91 m]

• Reverse Circulation, 3-3/4 in [95 mm] CIP Drill Pipe: 150 ft [46 m]

Note: Above drilling capacities may vary according to subsurface conditions and rotary head option.

HOIST OPTION

MAIN

• Single Line Capacity: 4,500 lbs [2,041 kg]

AUXILIARY

• Single Line Capacity: 3,000 lbs [1,361 kg]

SAFE-T DRIVER/WIRELINE

• 900 lbs [408 kg]

OPTIONAL EQUIPMENT

• Angle Drilling

• Mast Dump (Vertical Mast Slide)

• In-Out & Sideways Slide Base

• SPT Automatic Hammer, ASTM D-1586, 140 lb [64 kg], 170 lb [77 kg], 300 lb [136 kg], 340 lb [154 kg] Slugs Available

• Custom Breakout Table Designs

• Make/Break Double Rod Clamp System

• Hydraulic Breakout Wrench

• Water Pumps – Piston, Centrifugal and Progressive Cavity

• Water/Foam Injection Systems

• Swing-Out Under Body Auger Racks

• Rod Trough

• Water Tanks

• Driller/Helper Platforms

• Safety Cage Options

• Night Lights

MOUNTING OPTIONS

• Truck (4×2, 4×4)

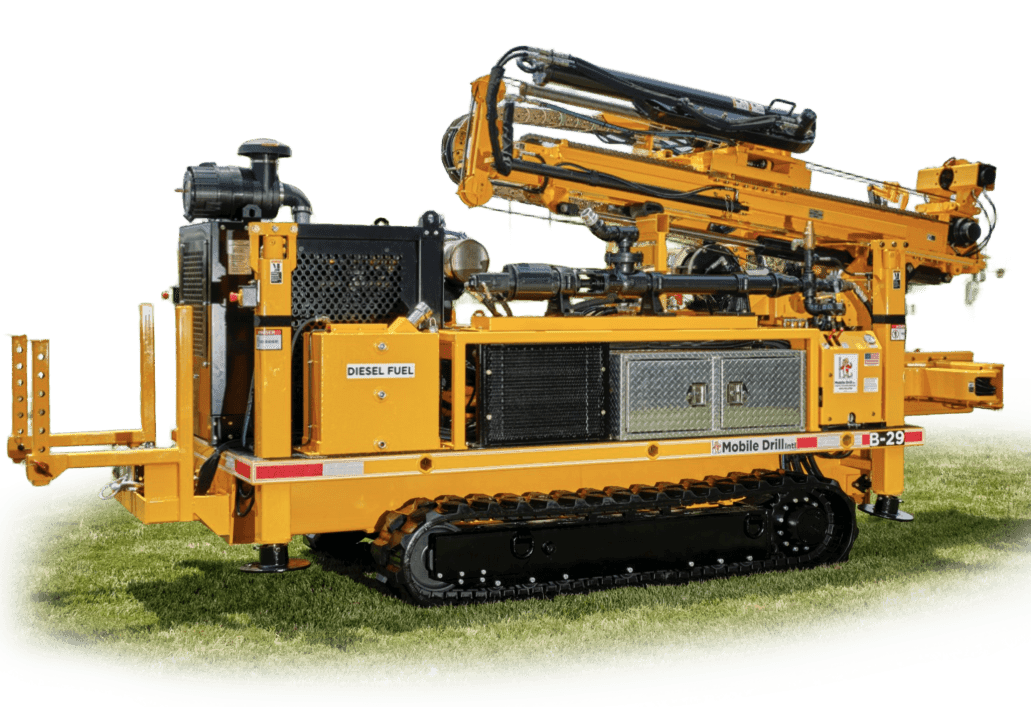

• Rubber Track Carrier
