New Drill Rigs

Hydraulic

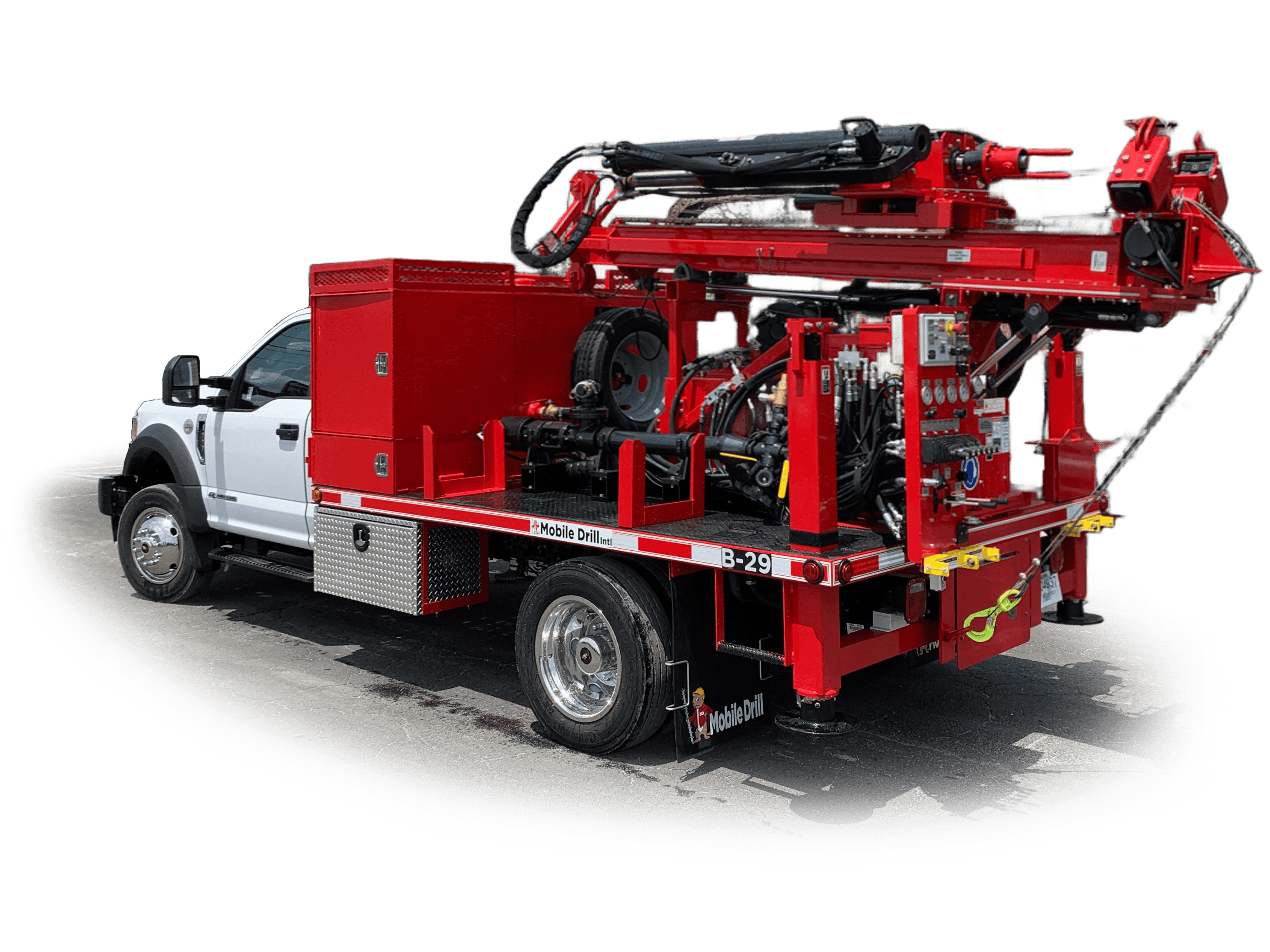

  • B29

    The B29 is a true multi-purpose drill for Geo-Environmental work. For use with Hollow Stem – SPT – Coring – Rotary – DTH applications.

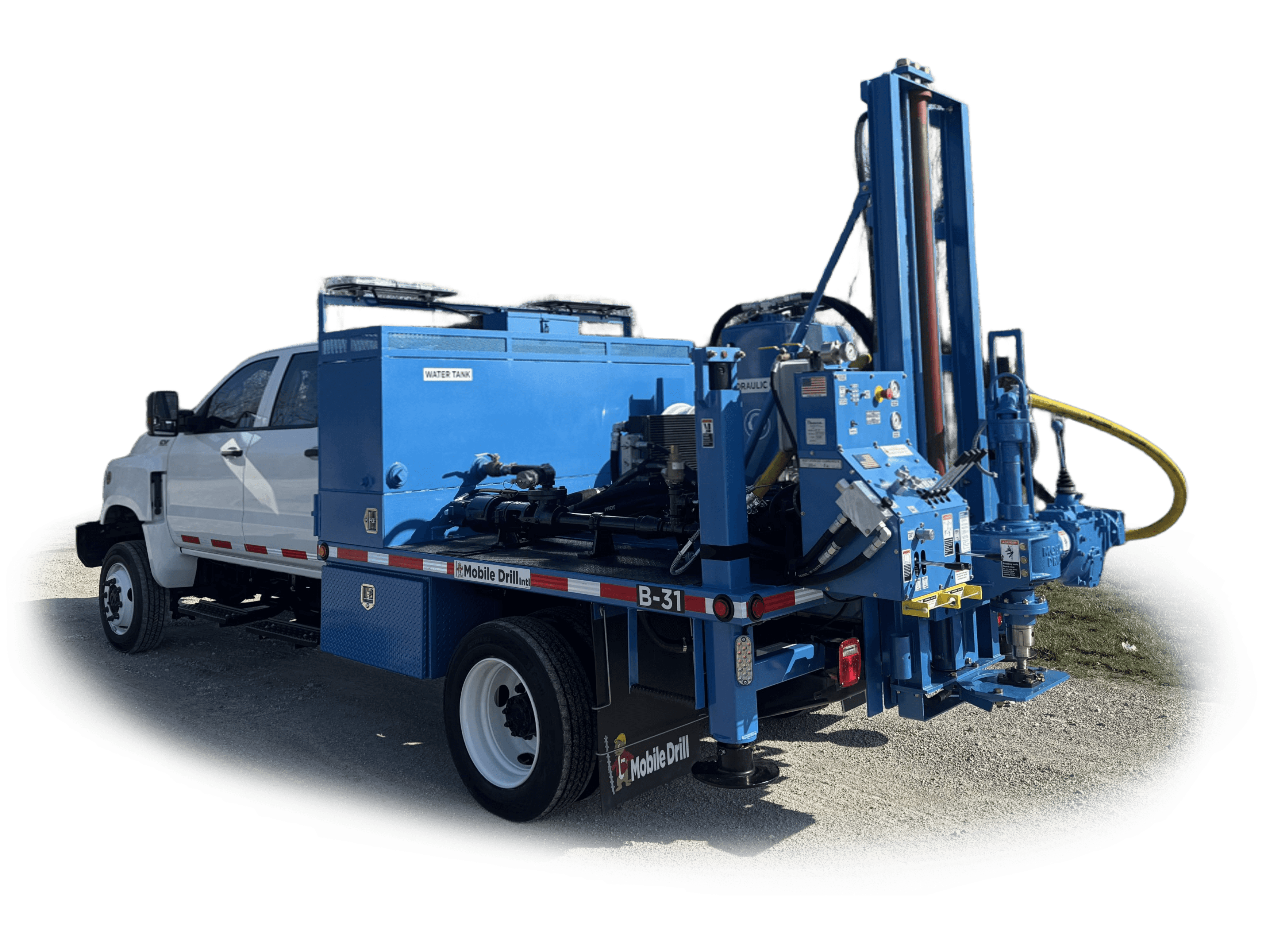

  • B31

    The B31 features a 68 inch feed stroke and a maximum rotary speed of 770 rpm. Ideally used in foundation exploration – post hole augering – environmental mineral & aggregate prospecting – shallow surface coring applications.

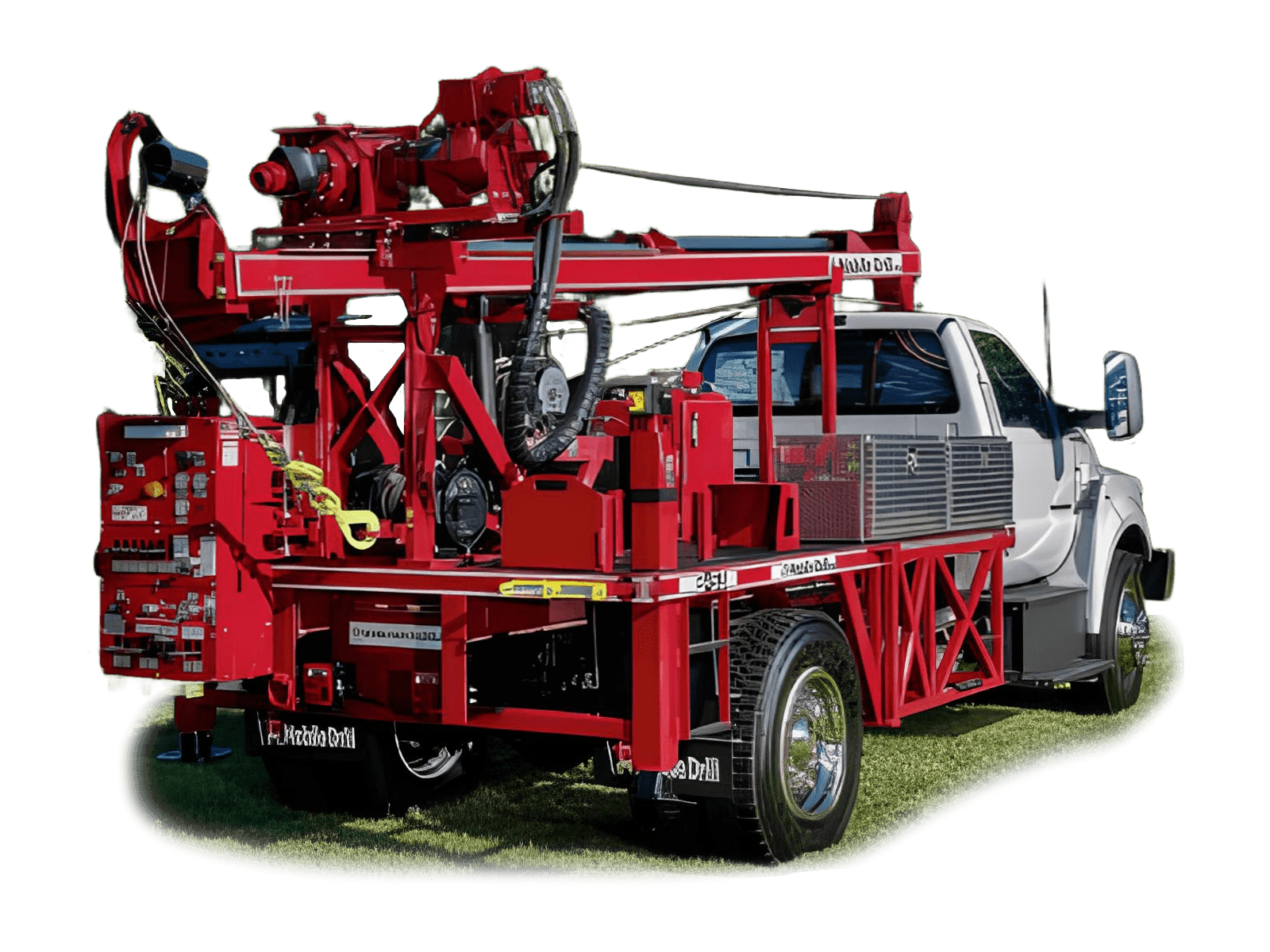

  • B53

    The B53 is a compact hydraulic drill that has been sized for mounting on a variety of carriers. It is great for multi-purpose rigs and angle drilling with a retract force of 24,000 lbs and a pulldown force of 31,400 lbs.

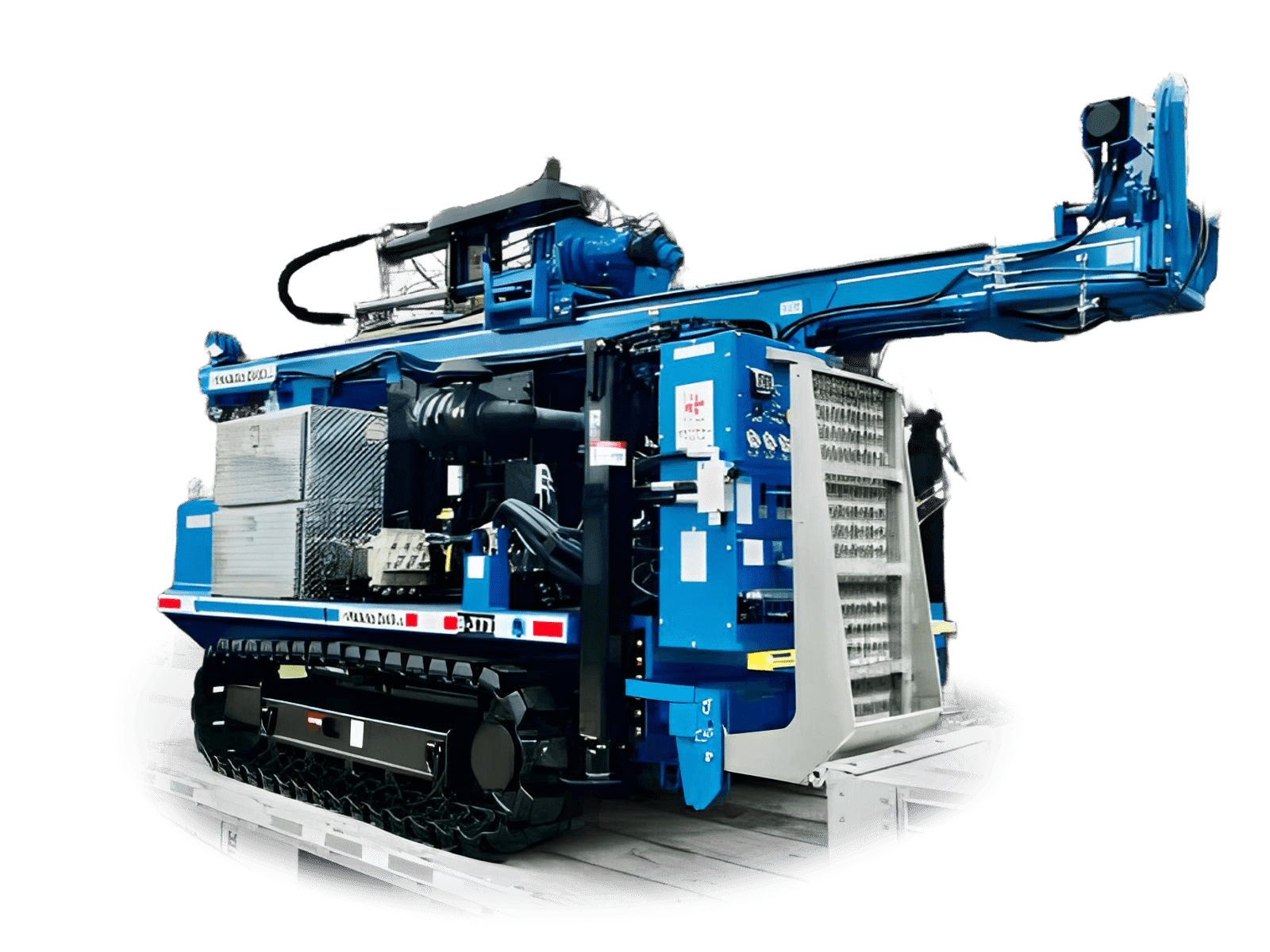

  • B37X

    The B37X features both a LO and an Ls version. Both versions are used in Auger  – SPT – Coring – Rotary and DTH applications.

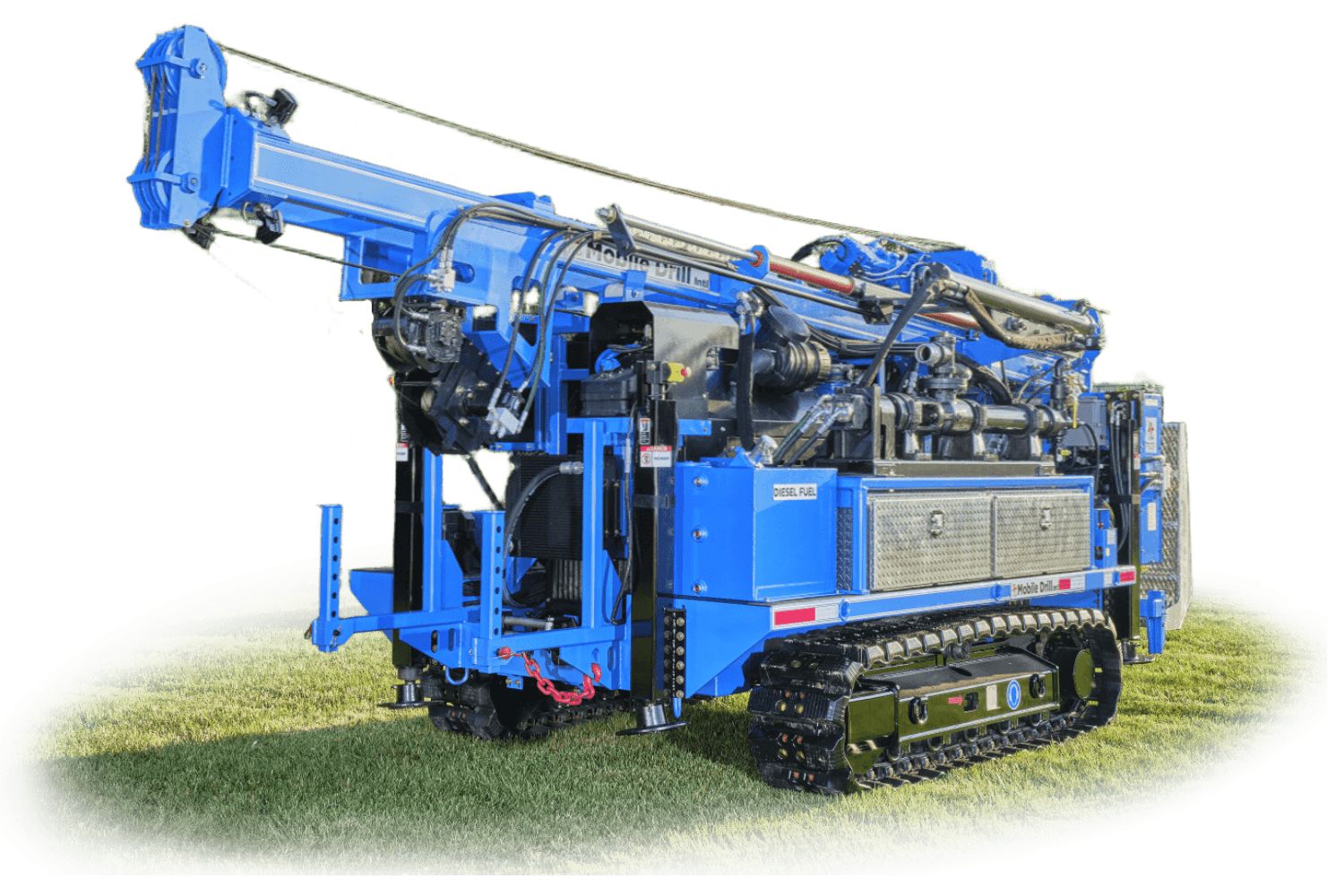

  • B48X

    The B48X is known as the workhorse for the Geo-technical and Environmental industries. Used in Auger – SPT – Coring – Rotary and DTH applications.

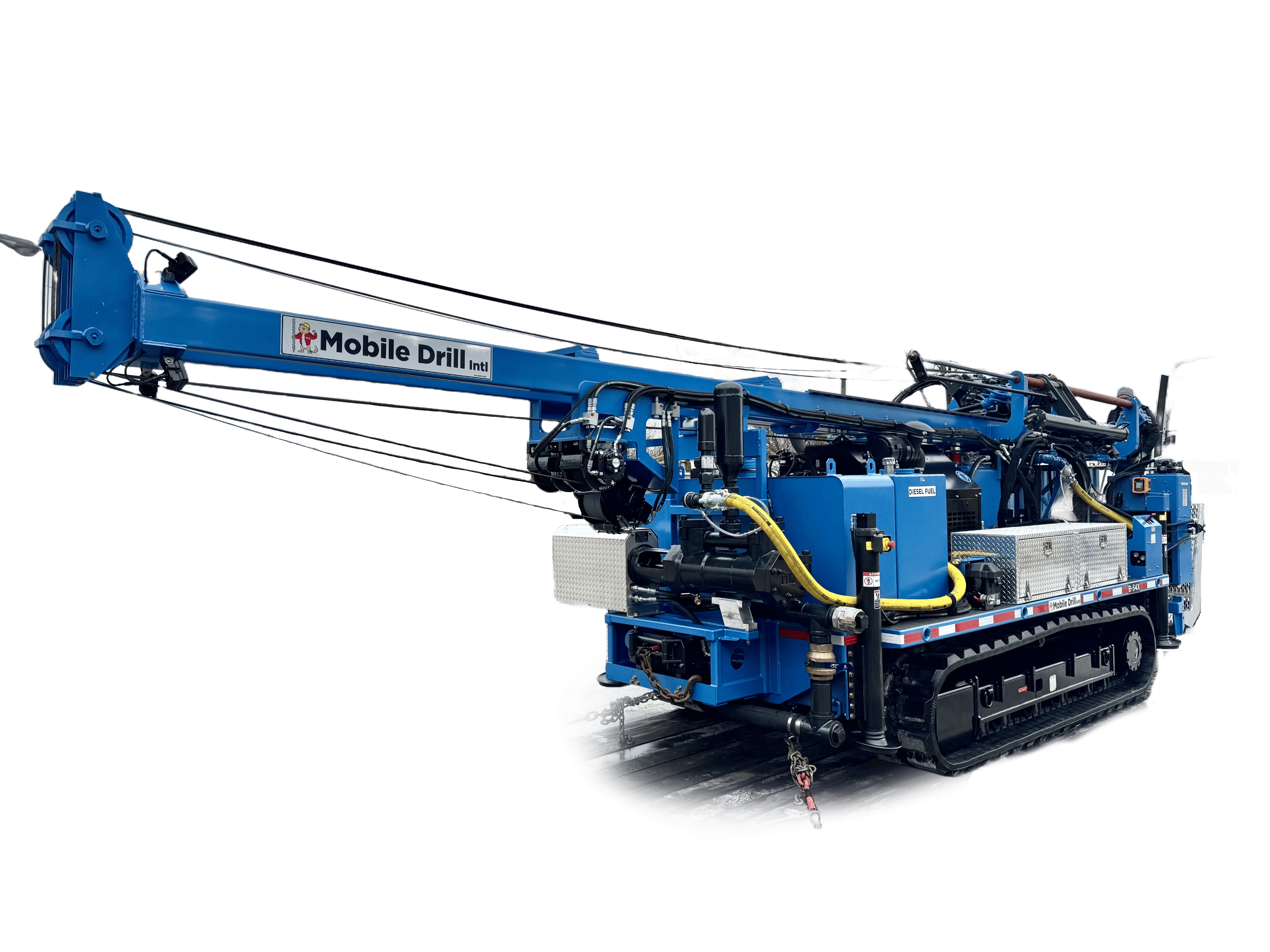

  • B54X

    The B54X is a multi-purpose workhorse for Geo-technical and environmental industries. Used in Coring – Rotary – Hollow Stem and Continuous Flight applications.

Mechanical

  • B51

    The B-51 is the next iteration of classic Mobile Drill power and versatility – it has an available 9,876 ft-lbs torque, can be track or truck mounted, making it ideal for the 100-125 ft hollow-stem auger market.  A small footprint mechanical drive unit, perfect for the geotechnical market.  The heart of the B-51 is the power shift transmission – this gives the operator options to shift gears and even direction without stopping rotation.  This feature gives the operator a new level of control of the drill string when augering in stiff/sticky clays, making for faster and safer production in the toughest conditions.

  • B57

    The B57 Mechanical Drill is one of Mobile Drill’s most versatile drills with a great return on your investment. Used in Rotary – Continuous Flight – Hollow Stem  and Diamond Core applications.

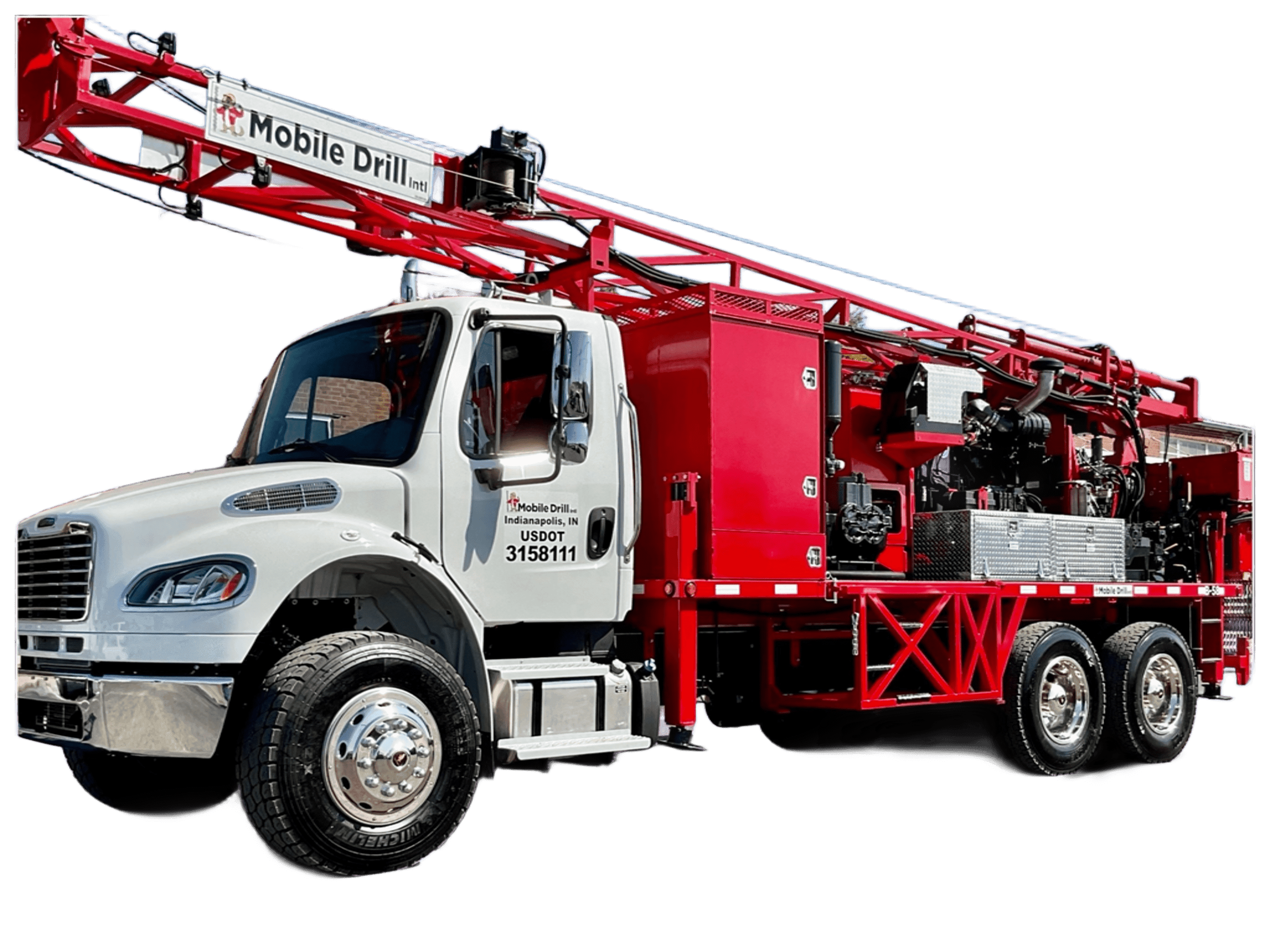

  • B58

    The B58 is the ultimate Geo-technical drill rig. Used in Air/Mud Rotary – Hollow Stem – Coring and SPT applications.

  • B60

    HYDRAULIC FEED SYSTEM

    • Pulldown force: 23,300 lbs [10,569 kg]
    • Retract force: 35,300 lbs [16,012 kg]
    • Feed speed, down: 61 ft/min [18.6 m/min]
    • Feed speed, retract: 40 ft/min [12.2 m/min]
    • Feed stroke: 6 ft [1.83 m]

    POWER UNIT

    • Deck Engines: Cummins, Deutz Diesel

    HYDRAULIC PUMPS

    • Primary pump: 24 gpm [90.9 l/min]
    • Auxiliary Pump: 24 gpm [90.9 l/min]

    DRILL HEAD ROTARY

    • 4-SPEEDS
    • Open bore: 4-3/4 in [120.7 mm]
    • HIGH TORQUE OPTION
      Maximum rotary speed: 664 rpm
      Maximum torque: 18,900 ft-lb [25,624 Nm]
    • HIGH SPEED OPTION
      Maximum rotary speed: 961 rpm
      Maximum torque: 13,000 ft-lb [17,625 Nm]

    ESTIMATED OPERATING CAPACITIES

    • Hollow stem augers, 4-1/4 in [108 mm] ID: 350 ft [106.7 m]
    • Continuous flight auger, 6 in [152.4 mm] OD: 450 ft [137.2 m]
    • Rotary drilling, 2-5/8 in [66.7 mm] OD drill pipe: 1,550 ft [472.4 m]
    • Diamond core drilling, N Wireline: 2,350 ft [716.3 m]
    • Note: Above drilling capacities may vary according to subsurface conditions and rotary head option.

    SPT AUTOMATIC HAMMER

    • ASTM D-1586 standards, standard duty and heavy duty
    • 140 lb [63.5 kg], 170 lb [77.1 kg]
    • 300 lb [136.1 kg]
    • 340 lb [154.2 kg] slugs available
    • Hydraulic self compensating

    LEVELING JACKS

    • Single Front/Dual Rear, 24 in (609.6 mm) OR
    • 36 in (914.4 mm) Stroke

    HOIST

    MAIN

    • Single Line Capacity: 12,000 lbs [5,443.1 kg]
    • Line speed: 52 ft/min [15.85 m/min]
    • Cable diameter: 5/8 in (.625) [15.9 mm]
    • Cable length: 100 ft [30.5 m] standard

    MAIN

    • Single Line Capacity: 8,500 lbs [3,855.5 kg]
    • Line speed: 0–75 ft/min [0–22.9 m/min], 0–325 ft/min [0–99.1 m/min] reverse
    • Cable diameter: 1/2 in (.500) [12.7 mm]
    • Cable length: 100 ft [30.5 m] standard

    AUXILIARY

    • Single Line Capacity: 4,500 lbs [2,041.2 kg]
    • Line speed: 0–135 ft/min [41.2 m/min]
    • Cable diameter: 5/16 in (.325) [8.3 mm]
    • Cable length: 100 ft [30.5 m] standard
    • WIRELINE

      • Single Line Capacity: 1,200 lbs [544.3 kg]
      • Line speed: 0–500 ft/min [0–152.4 m/min]
      • Cable diameter: 3/16 in (.185) [4.7 mm]
      • Cable length: 400 ft [121.9 m] standard
      • Winch capacity: 3,500 ft [1,066.8 m] cable

      SAFE-T DRIVER

      • Single Line Capacity: 900 lbs [408.23 kg]
      • Line speed: variable up, freefall down
      • Cable diameter: 1/4 in (.250) [6.4 mm]
      • Cable length: 300 ft [91.4 m] standard

      OPTIONAL EQUIPMENT

      • Mast: 26 ft [7.9 m] or 30 ft [9.1 m]
      • In-out slide base/Side-to-side slide base
      • Above deck combination auger/rod rack
      • Auger racks under body swing out
      • Rod trough
      • Toolboxes
      • Water tanks 100-500 gal [37.5 l–1,892.5 l] stainless steel
      • Top mount water swivel
      • Standpipe
      • Water pumps
      • Hydraulic rod chuck
      • Break-out wrench
      • Drive tool quick change adapters
      • Rod clamp system
      • Driller platform

      MOUNTING OPTIONS

      • Truck
      • Trailer
      • Track Carrier

Man Portable

  • Minuteman

    The Minuteman is the ultimate gas/electric man-portable drill. Featuring a 68 inch feed stroke and a maximum rotary speed of 460 rpm this drill is used for Pre-bid – Concrete Core – Asphalt Core  and Test drilling applications.
